Shuttle 39

39 ft High-Performance Sailing Trimaran

The Shuttle 39 is a high performance trimaran designed for offshore sailing and fast cruising. The first vessel was launched in June 2018 by owner Andrew Fennell.

Her 18.6m rotating wing mast supports a total sail area of 190m2 and the entire vessel is engineered for full carbon/foam construction to achieve an exceptionally light weight of 2200kg. The outrigger volume is close to 300% of the displacement providing increased reserve buoyancy and an optimised hull shape for flying the main hull.

The deck layout has been designed for shorthanded sailing and the beam configuration maximises interior accommodation boasting a comfortable double cabin aft, galley, navigation station and saloon with twin berths mid-ships and a cosy double berth in the forepeak.

At just under 12m in length she is exempt from some of the more stringent ISAF offshore sailing regulations and can also fit inside two standard 40ft shipping containers for ease of transportation.

"..... engineered for full carbon/foam construction to achieve an exceptionally light weight of 2200kg."
"..... engineered for full carbon/foam construction to achieve an exceptionally light weight of 2200kg."
Orion Shuttleworth, Managing Director of Shuttleworth Design.

Video

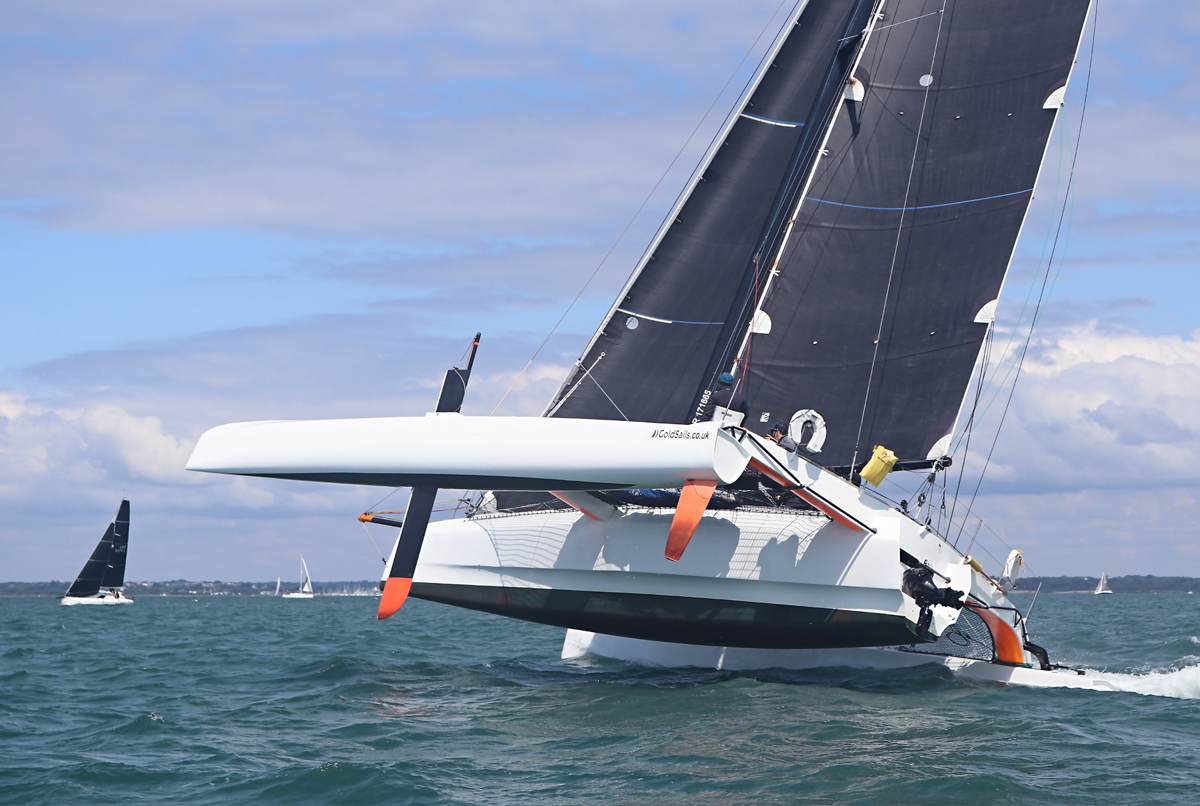

"The outrigger volume is close to 300% of the displacement providing increased reserve buoyancy and an optimised hull shape for flying the main hull."
"The outrigger volume is close to 300% of the displacement providing increased reserve buoyancy and an optimised hull shape for flying the main hull."
Orion Shuttleworth, Managing Director of Shuttleworth Design.

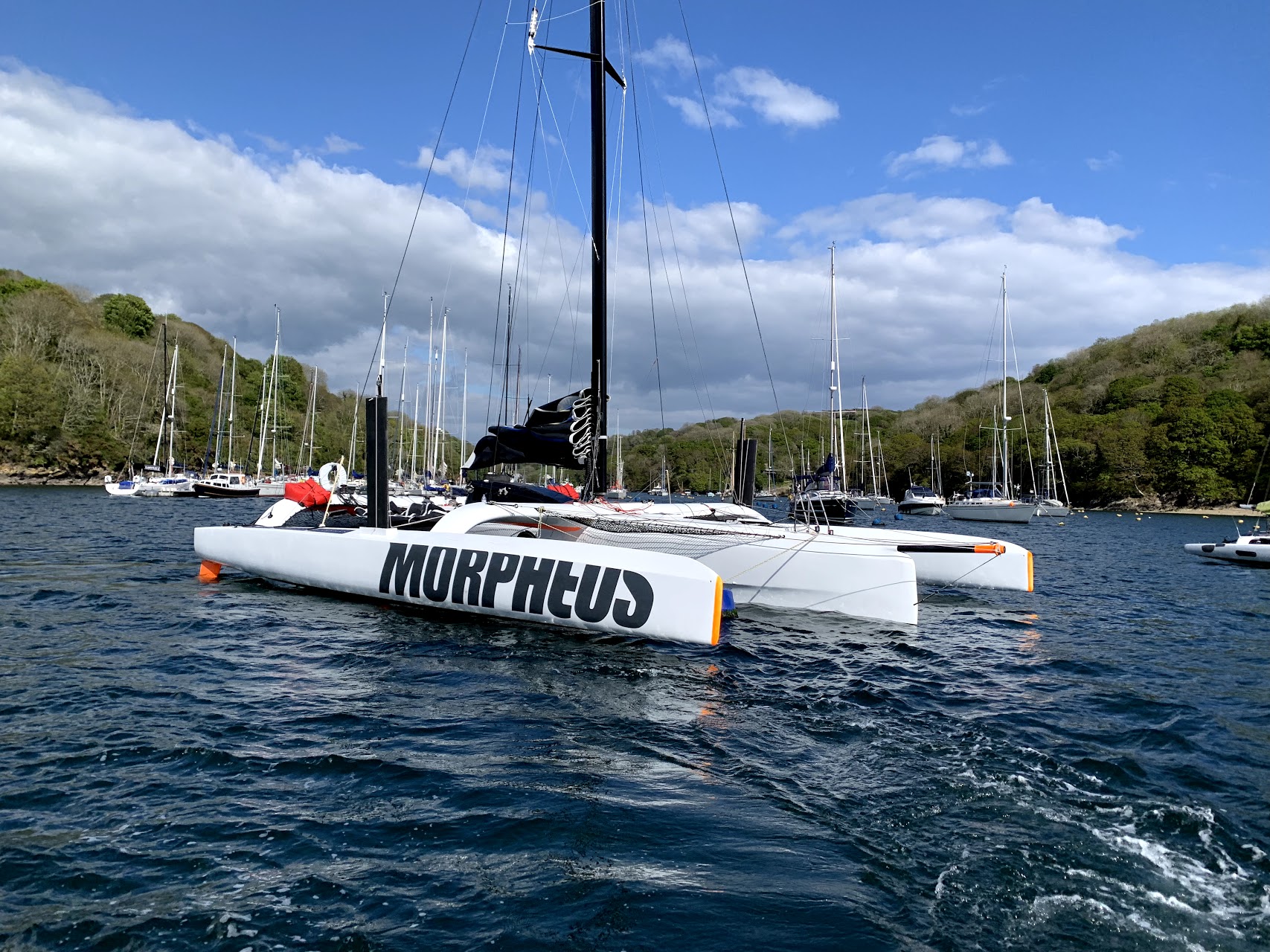

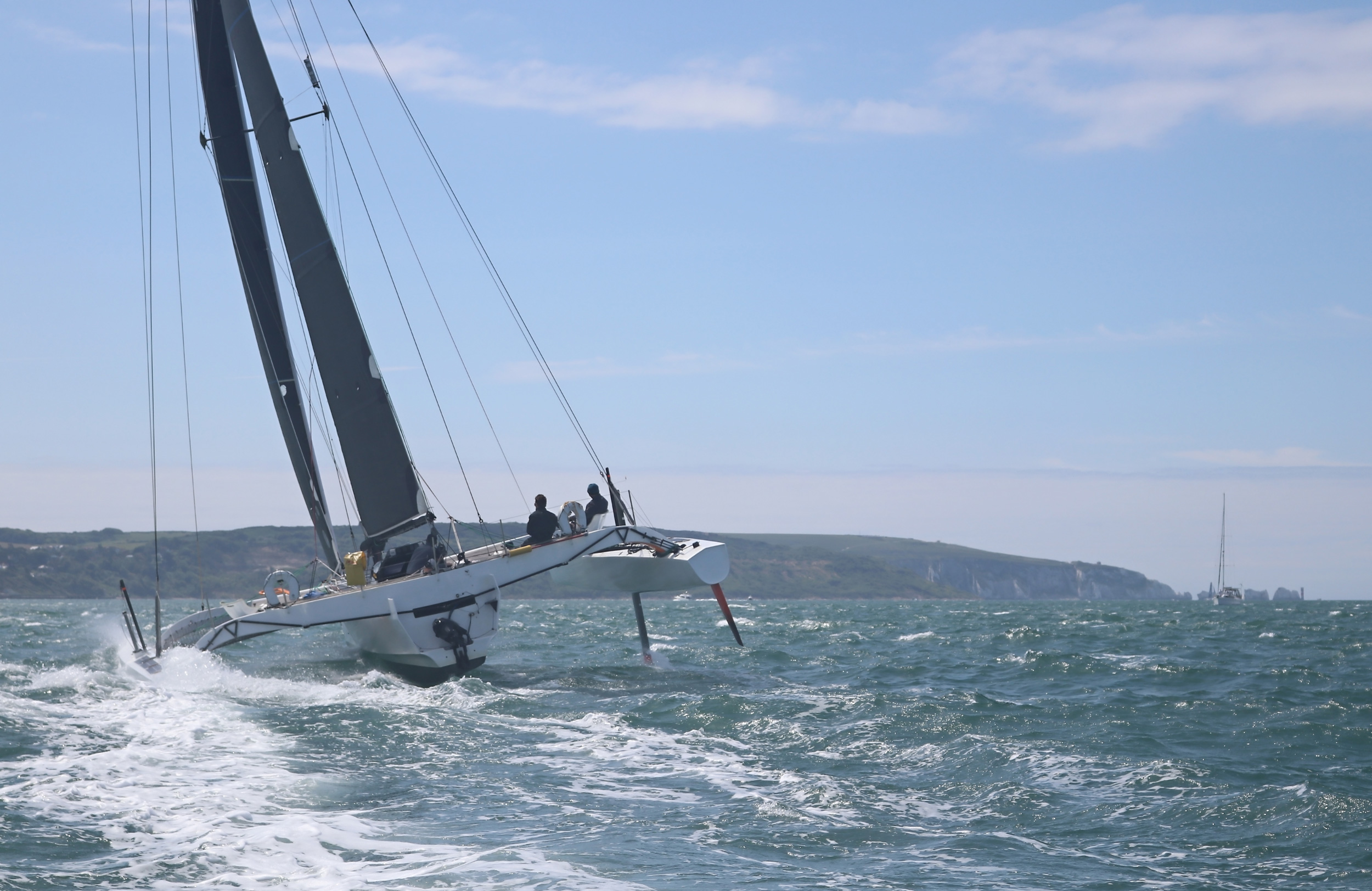

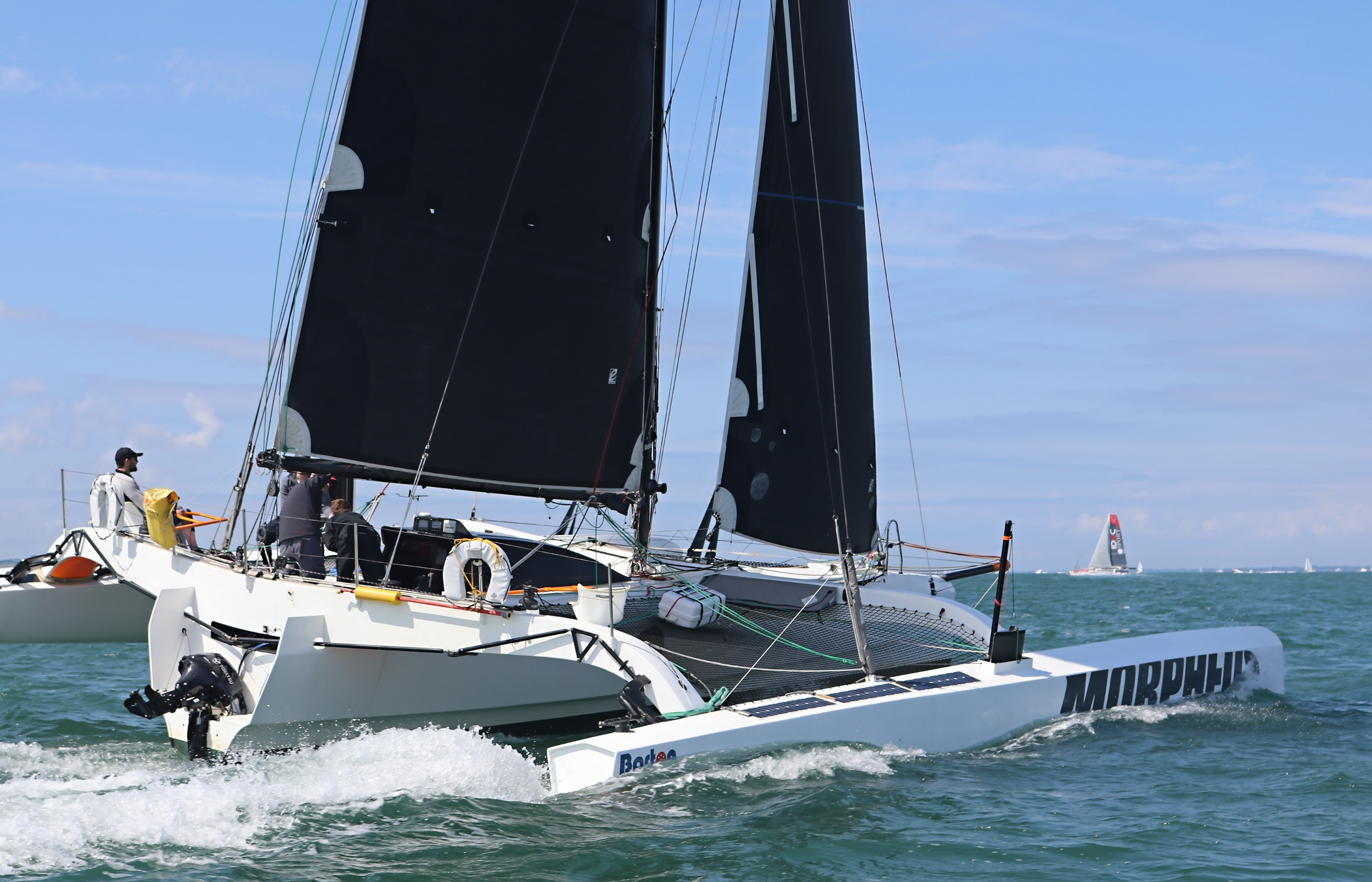

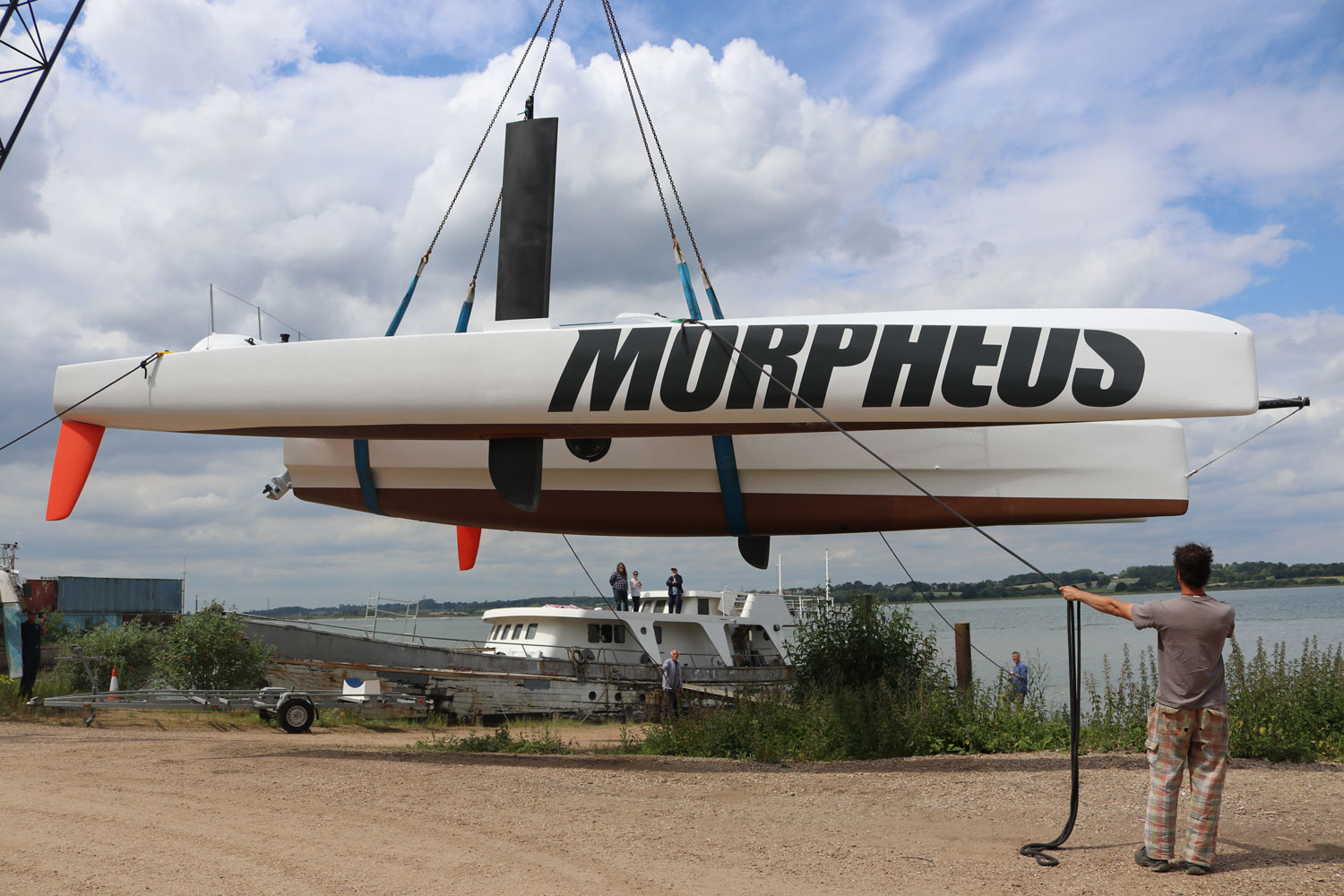

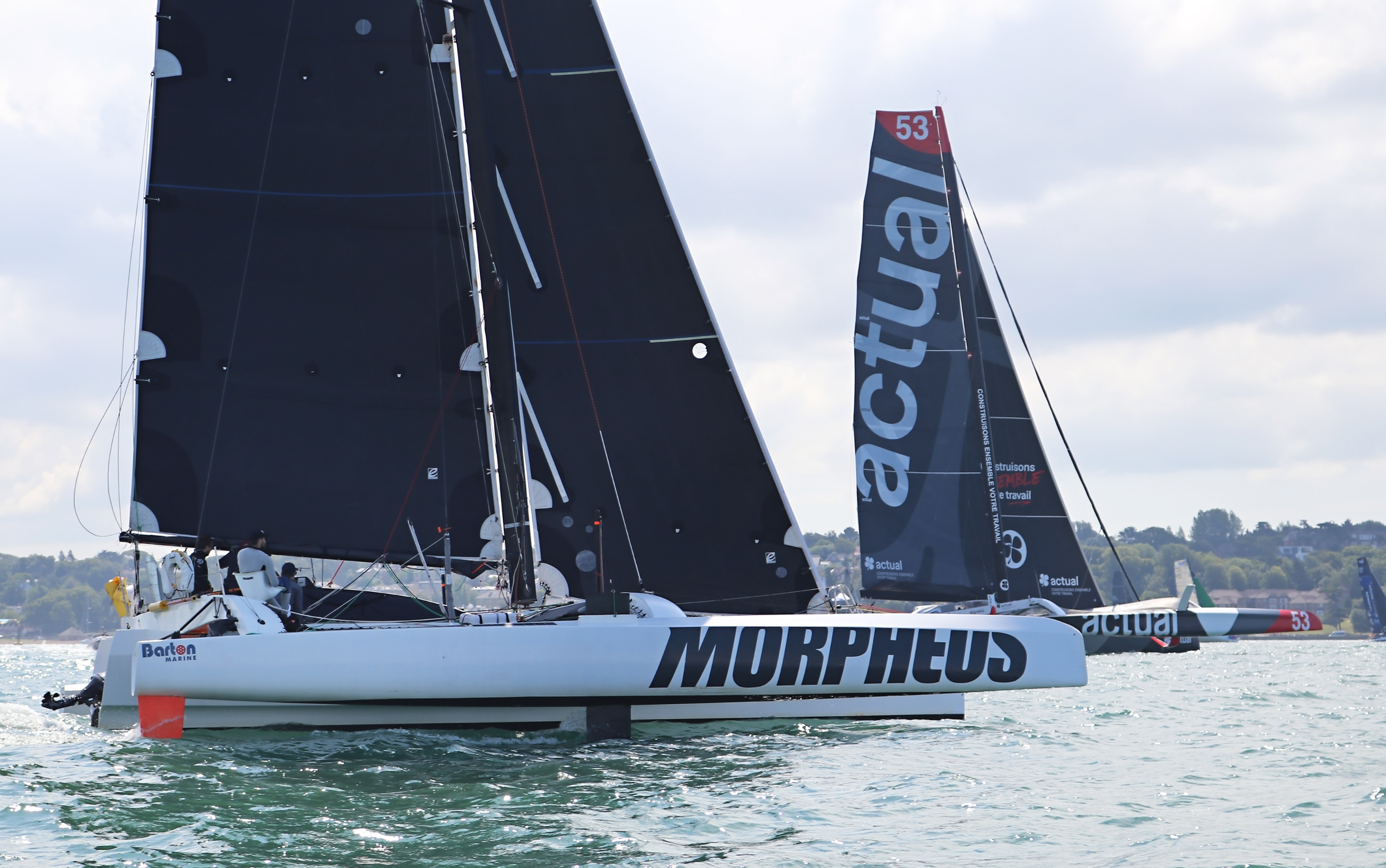

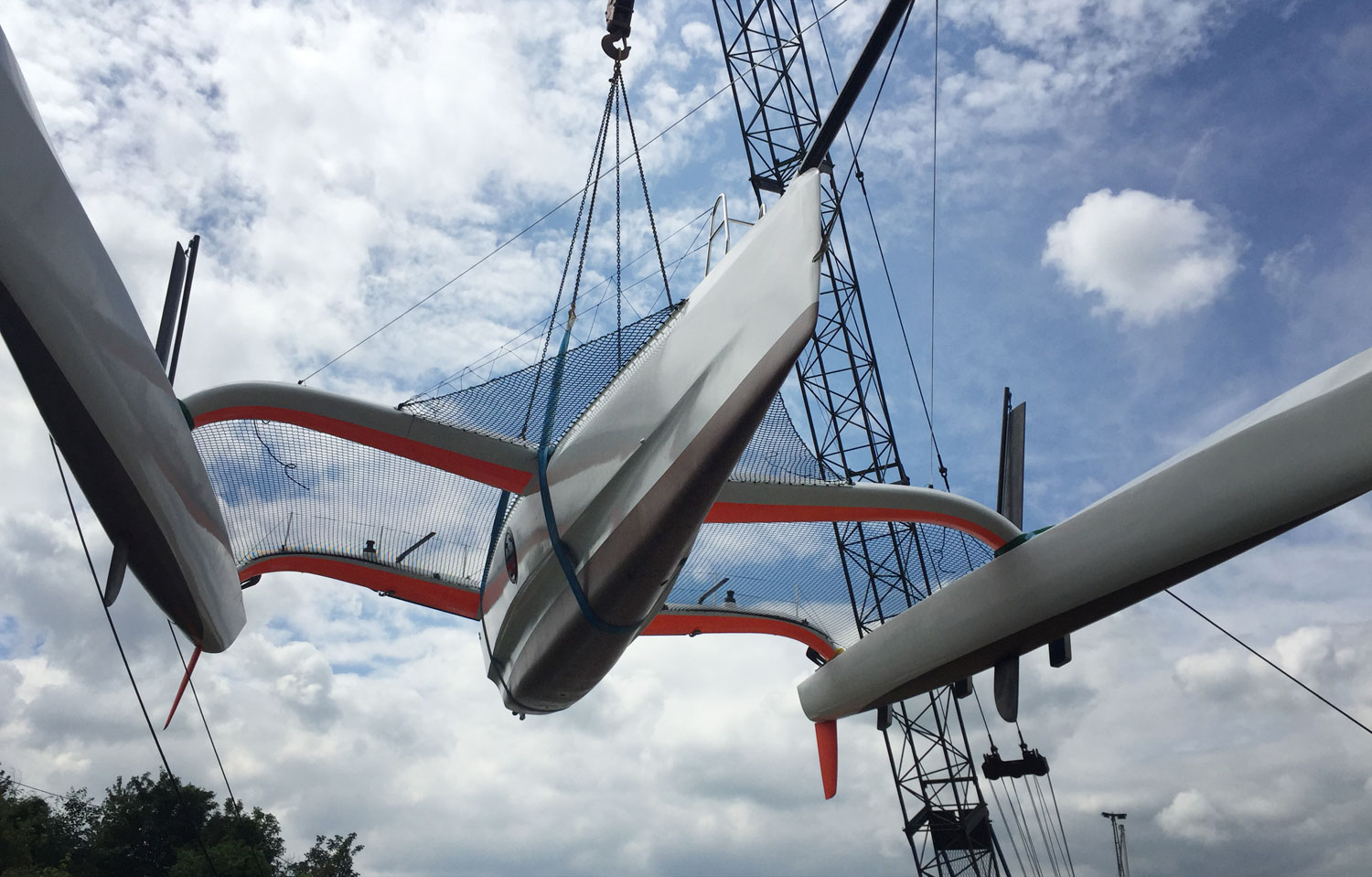

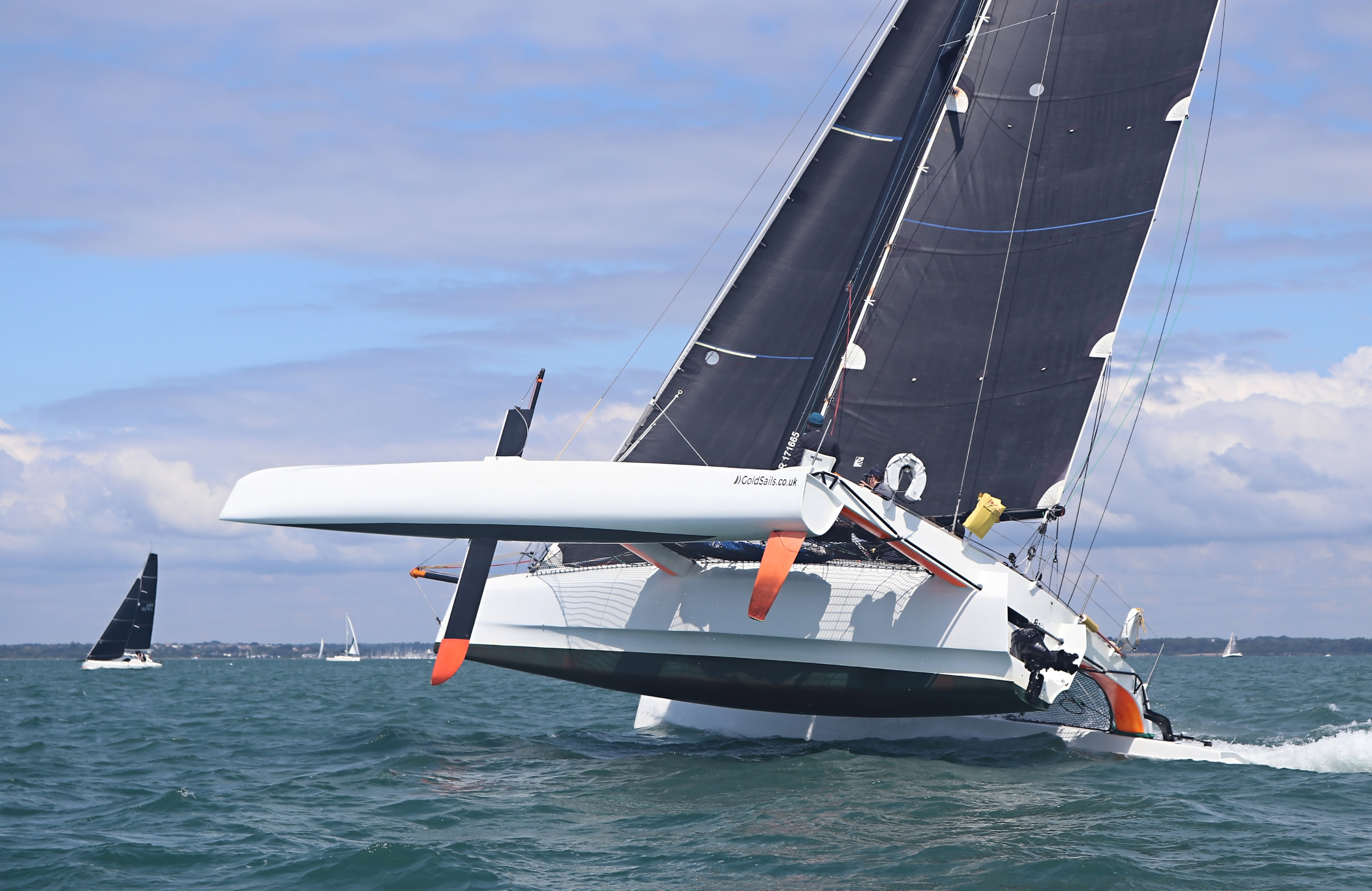

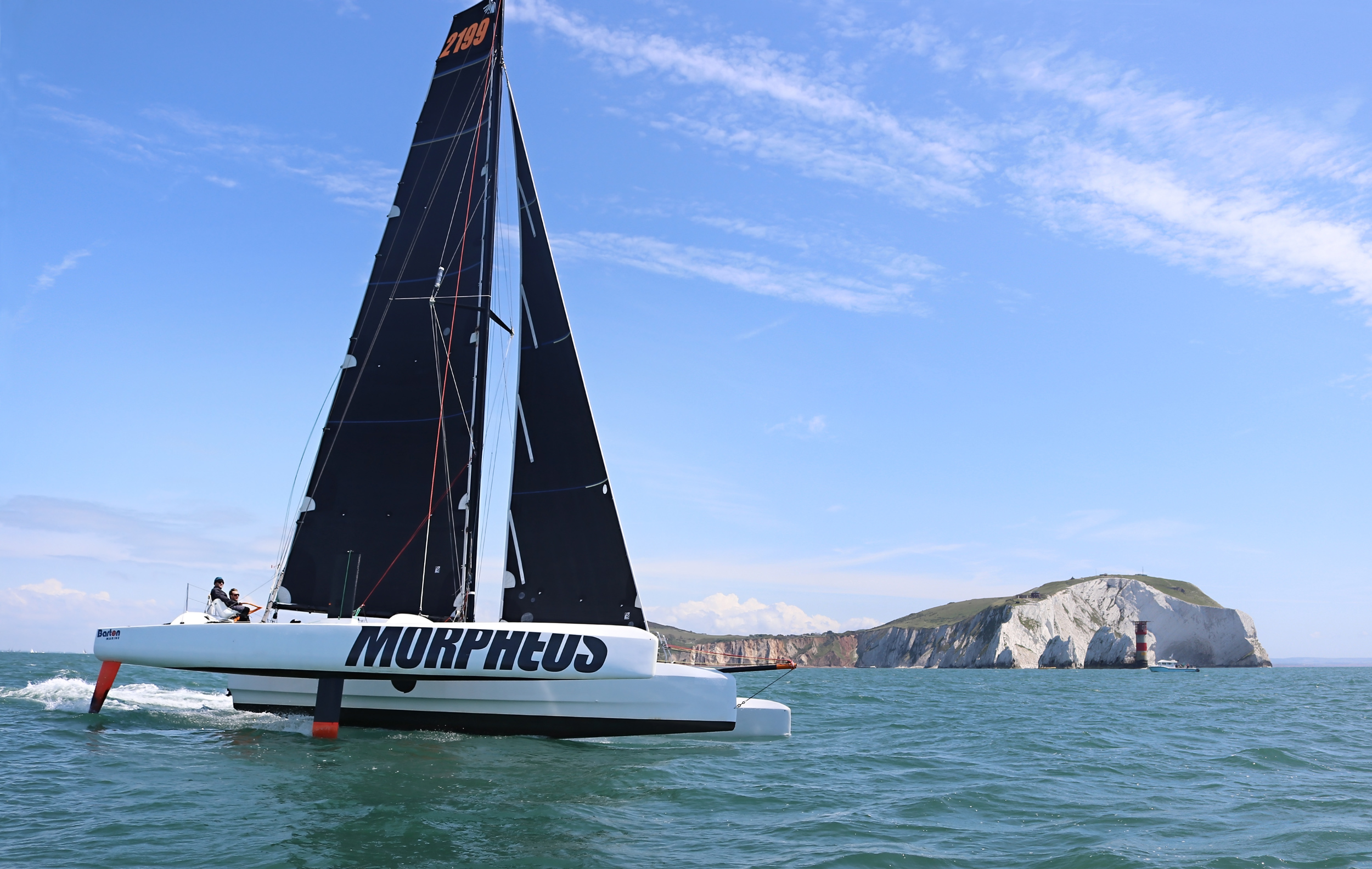

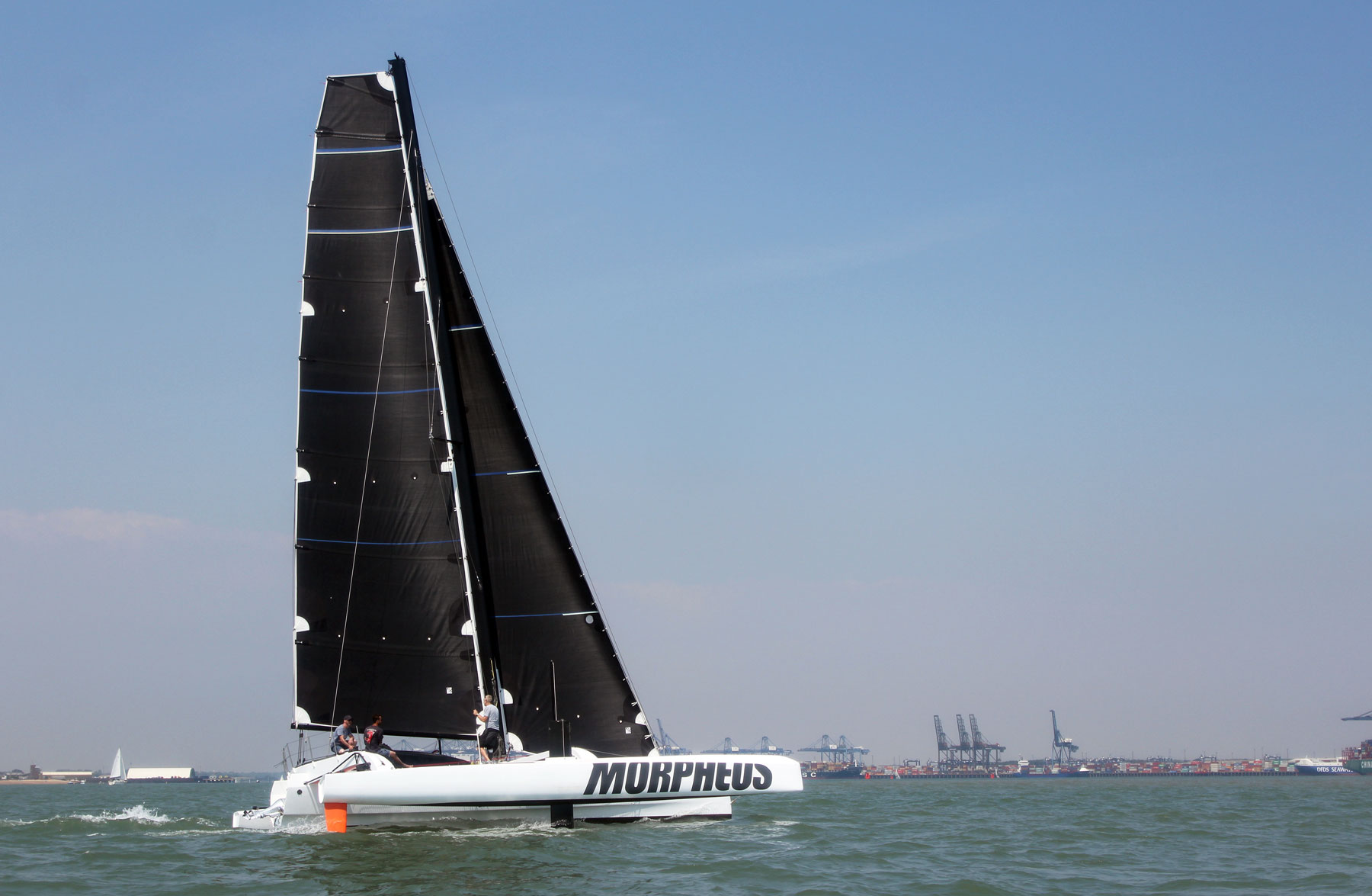

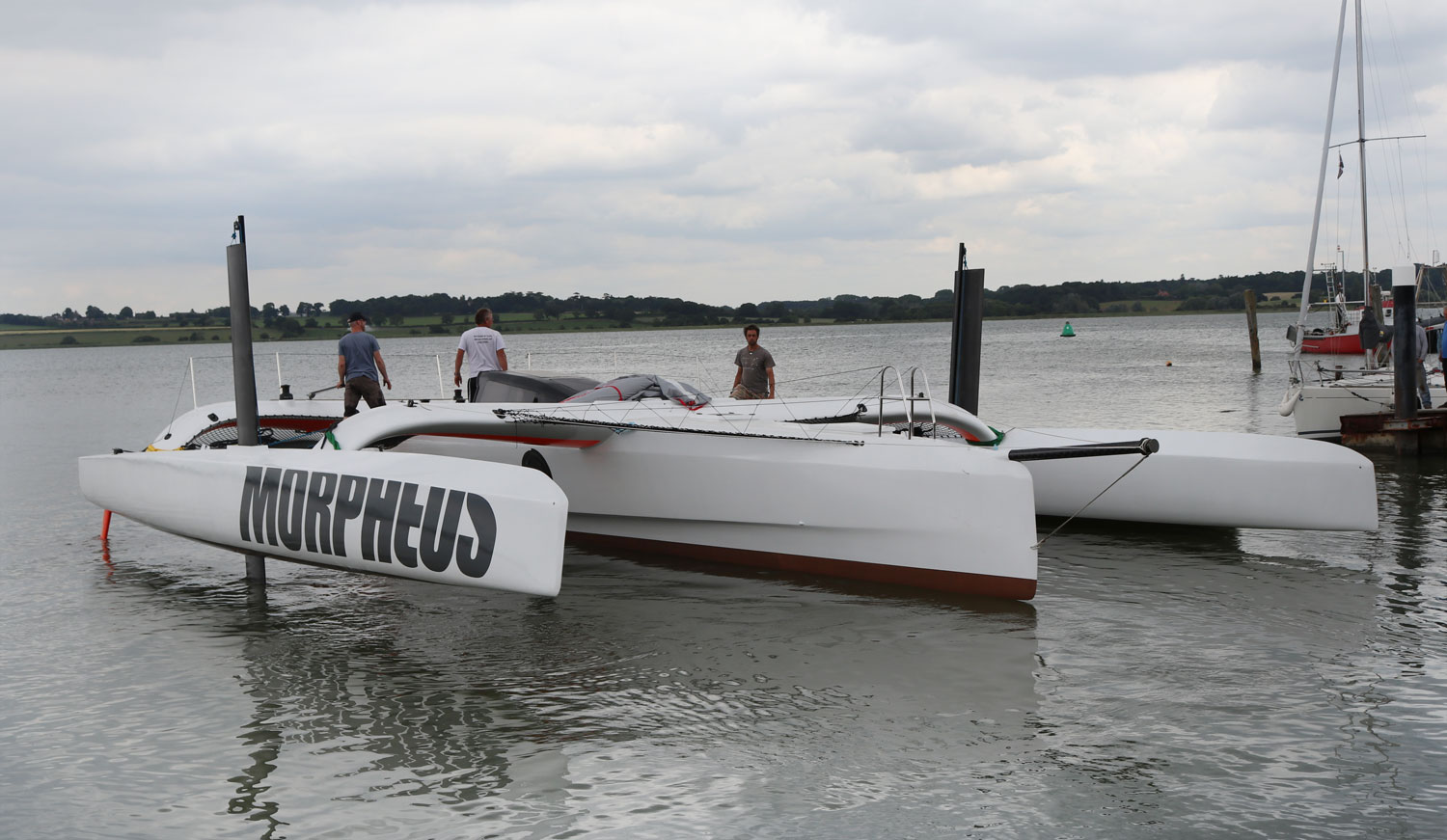

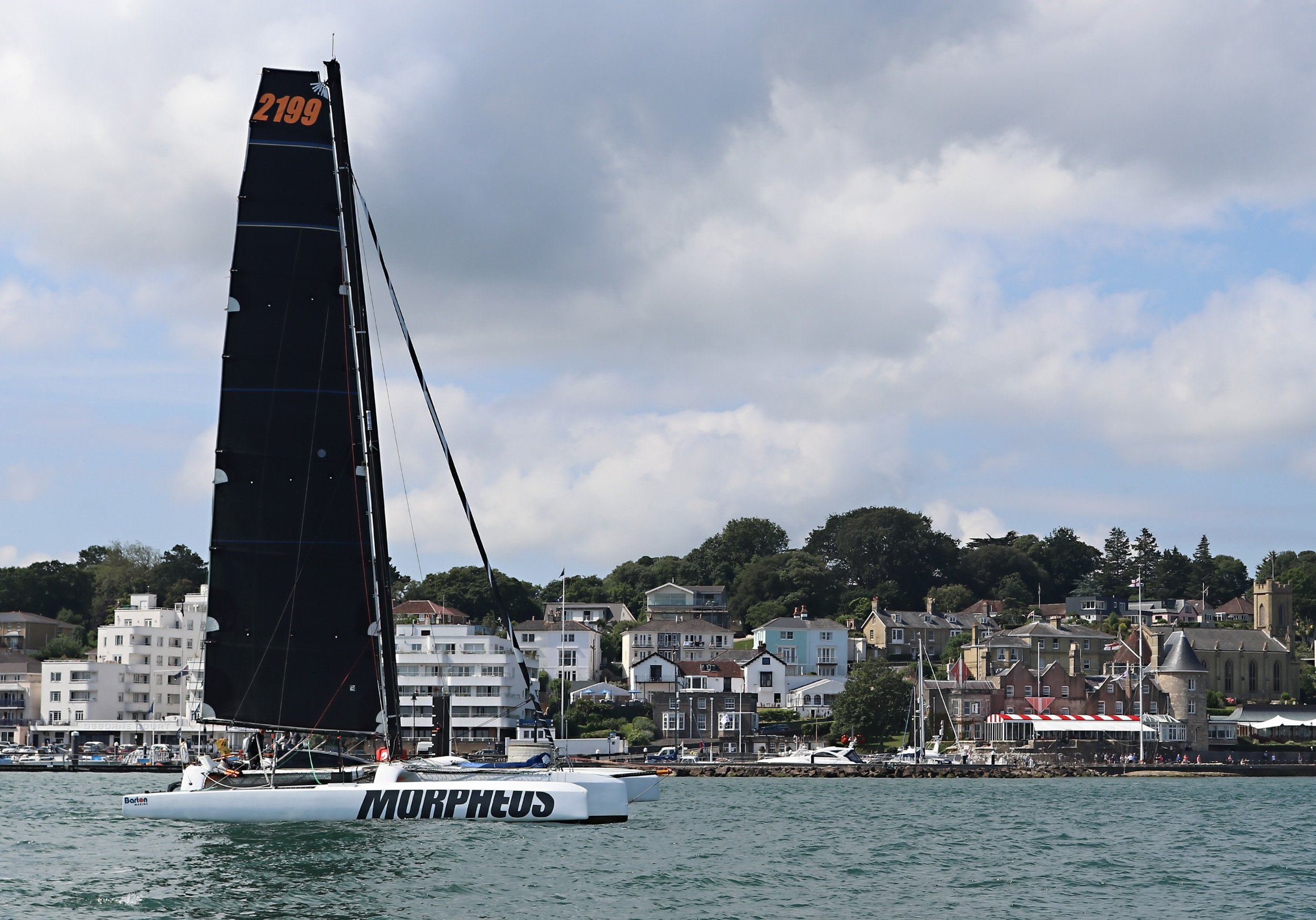

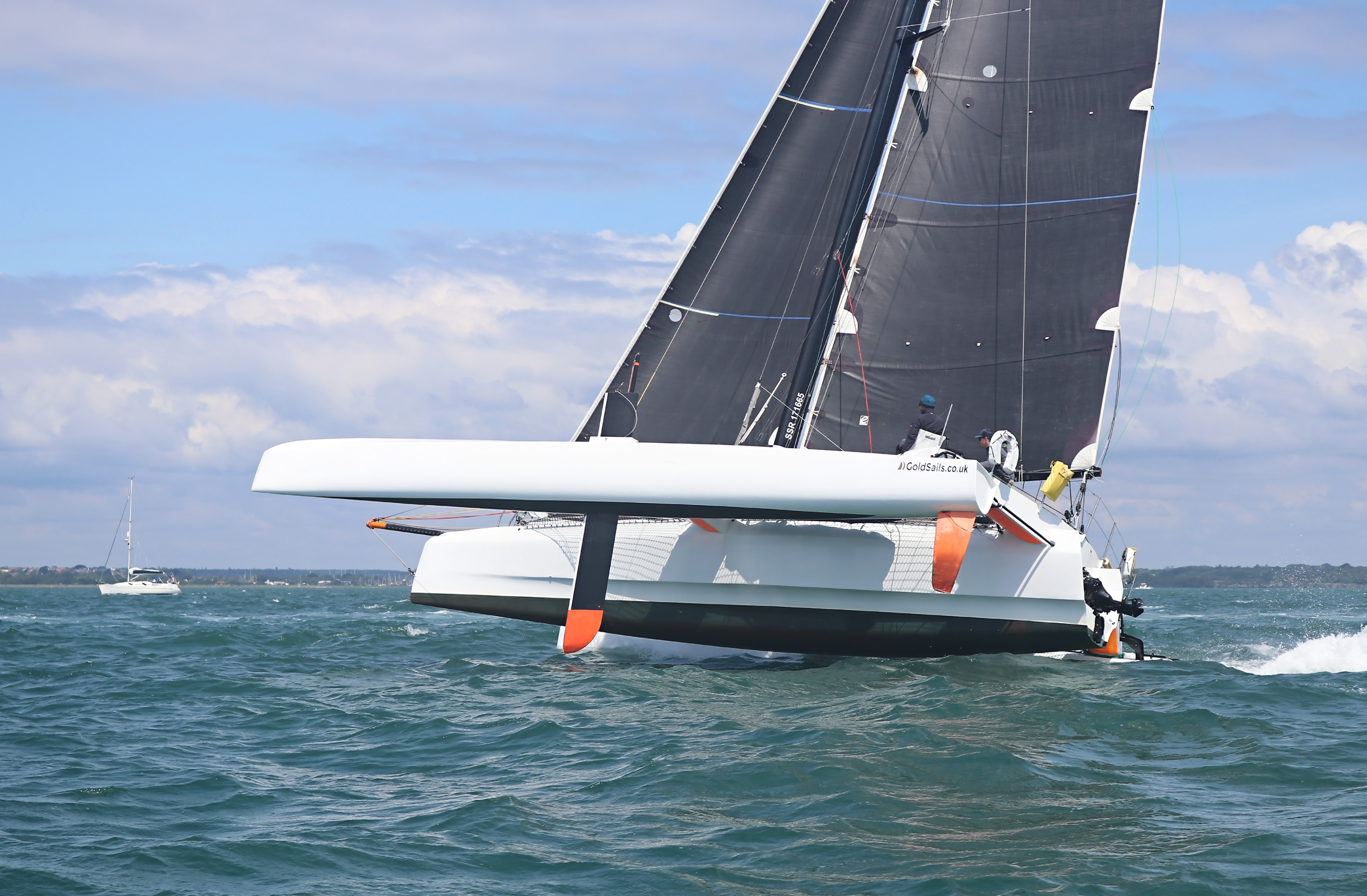

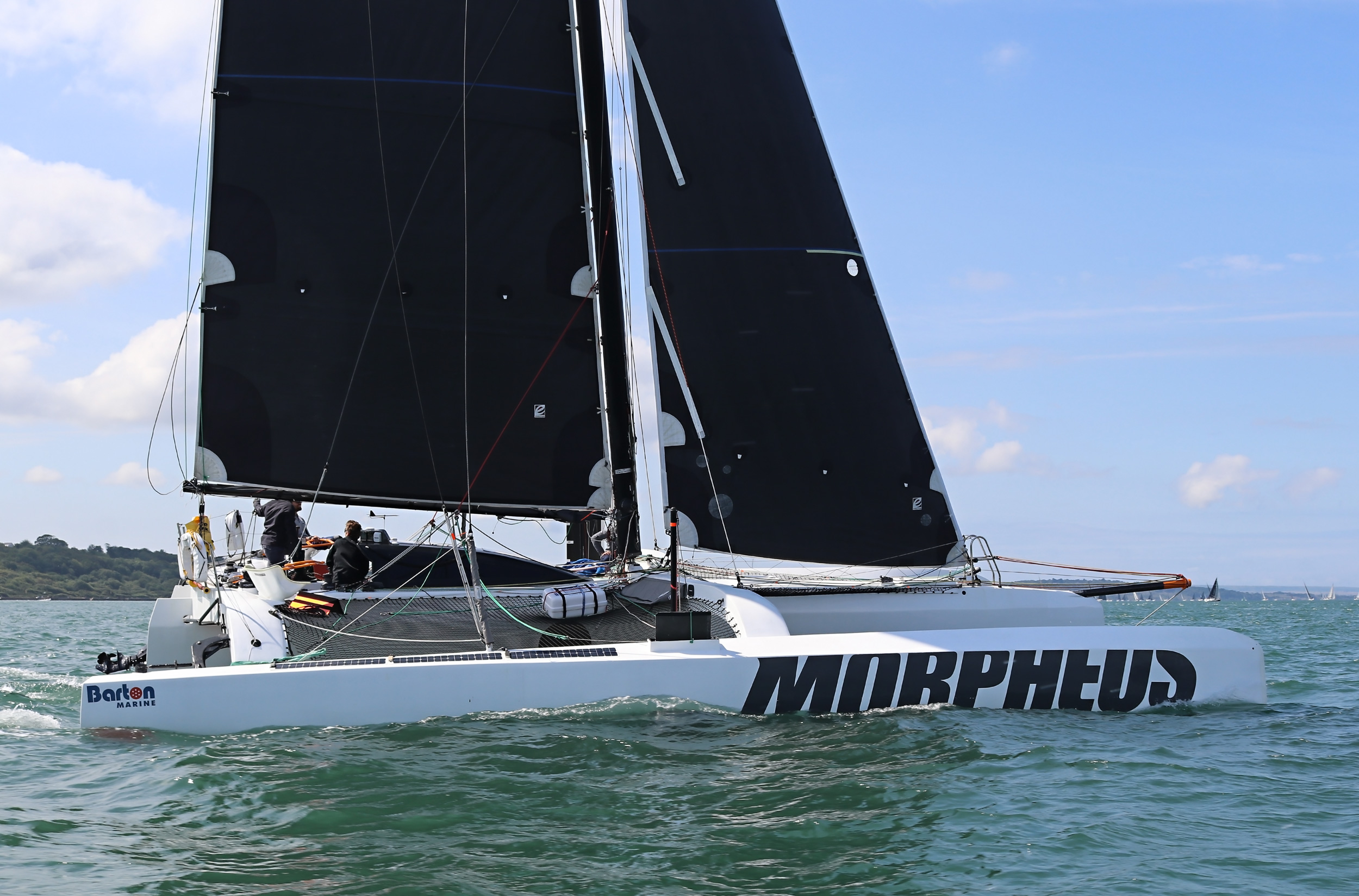

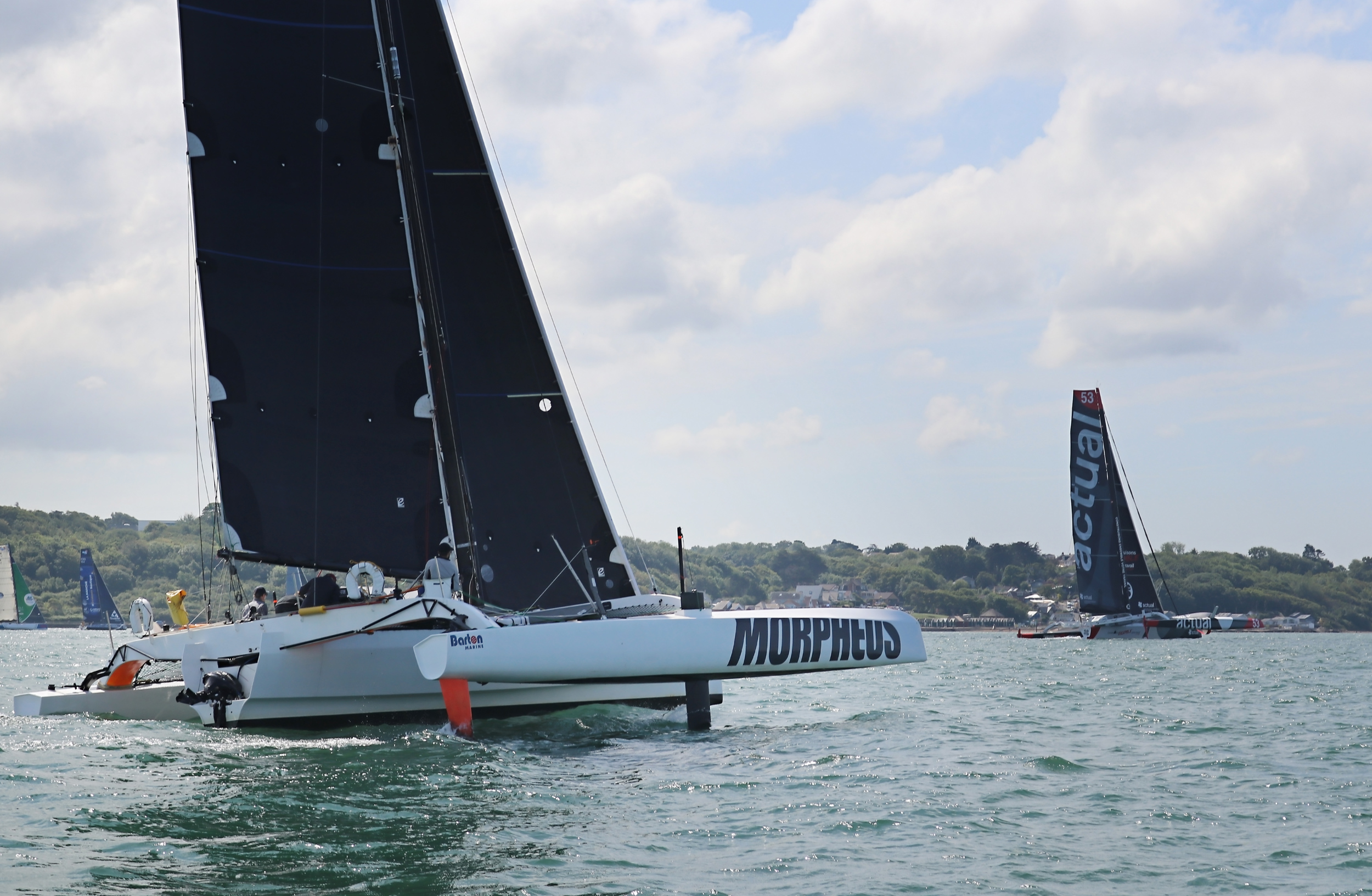

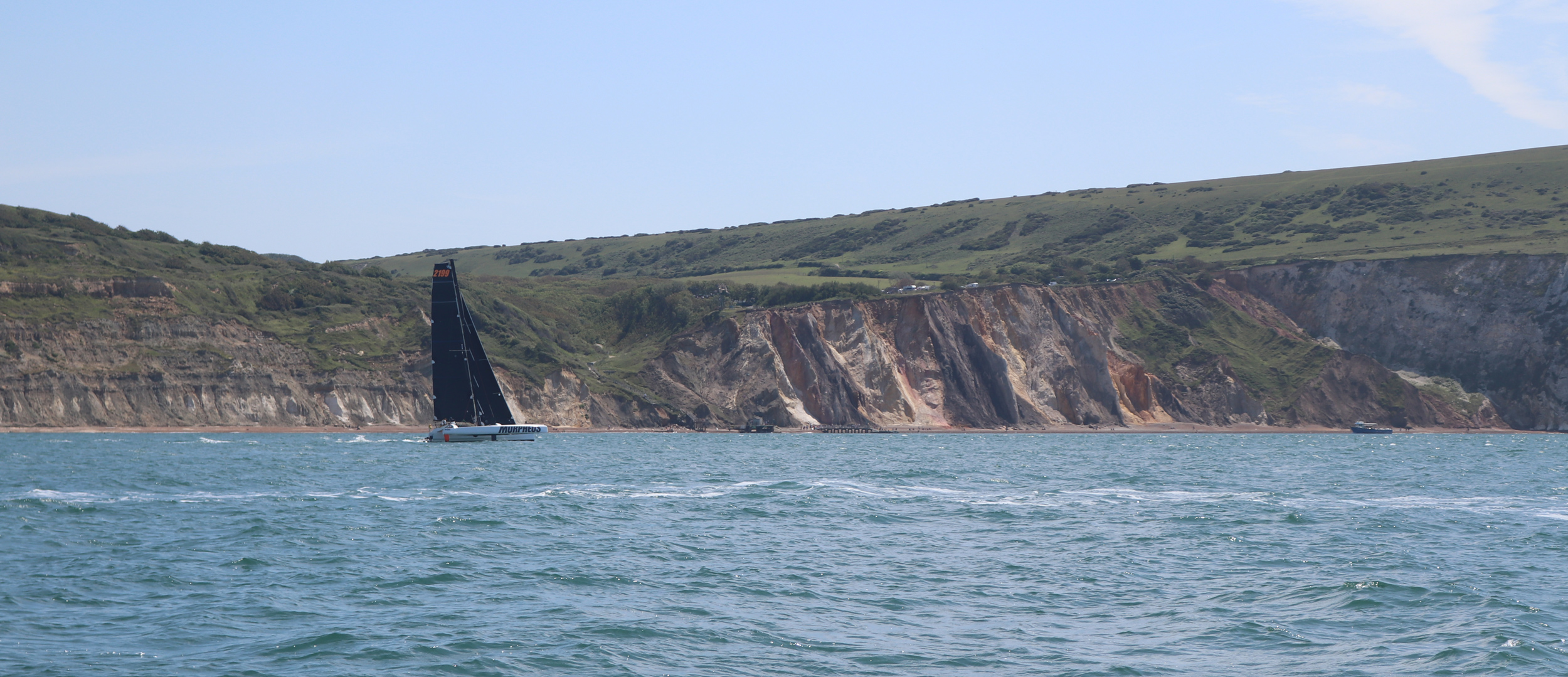

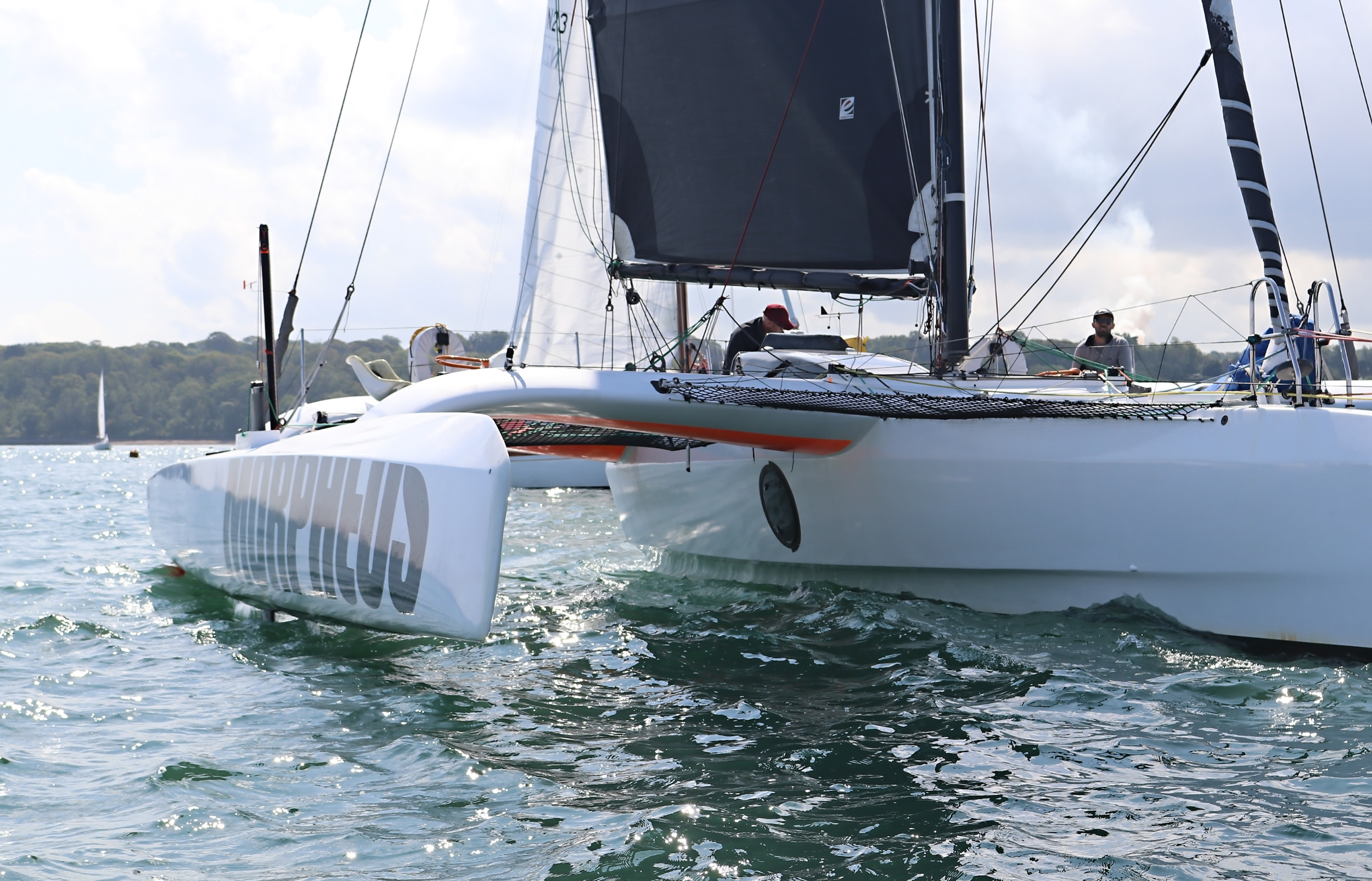

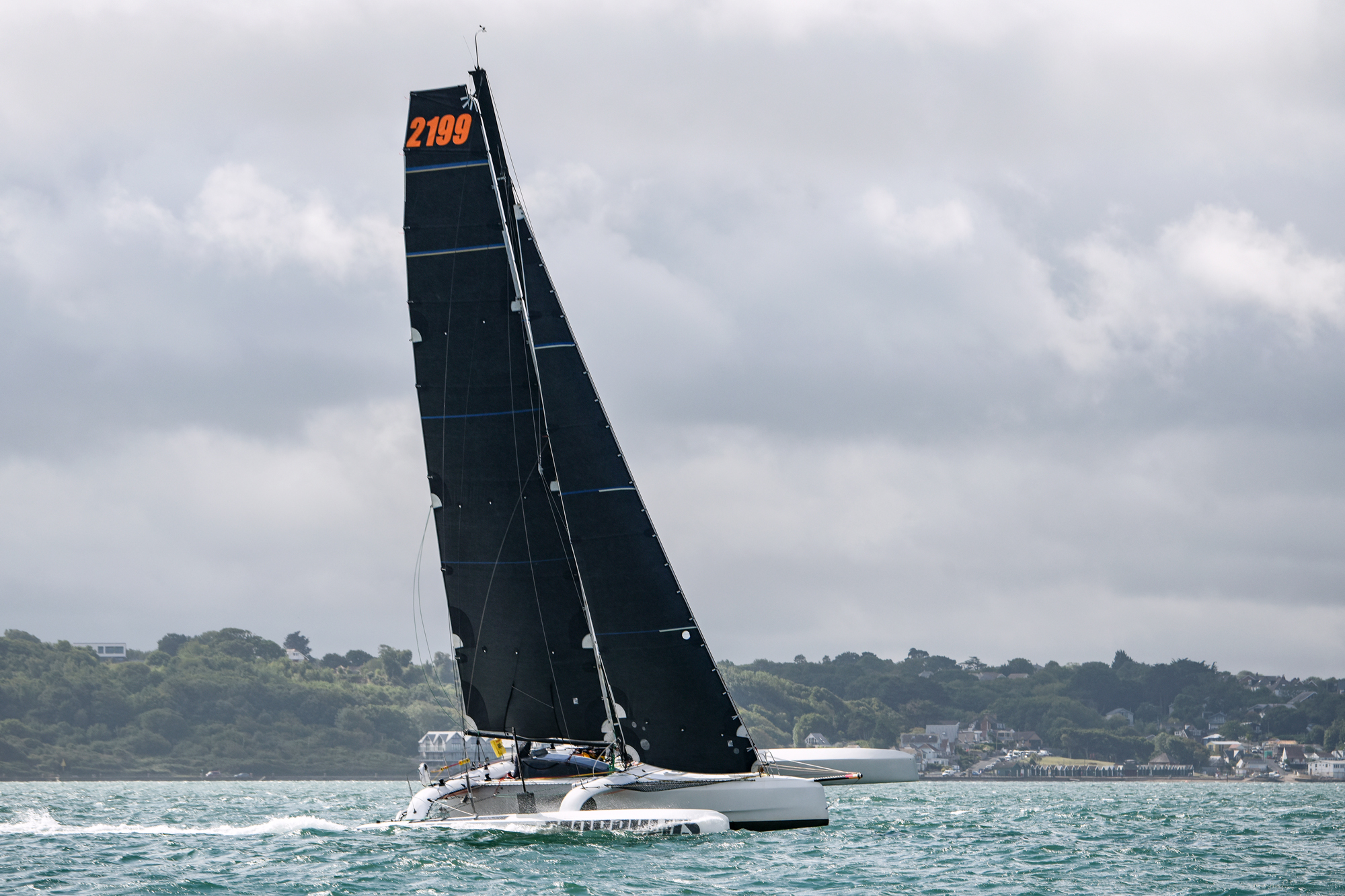

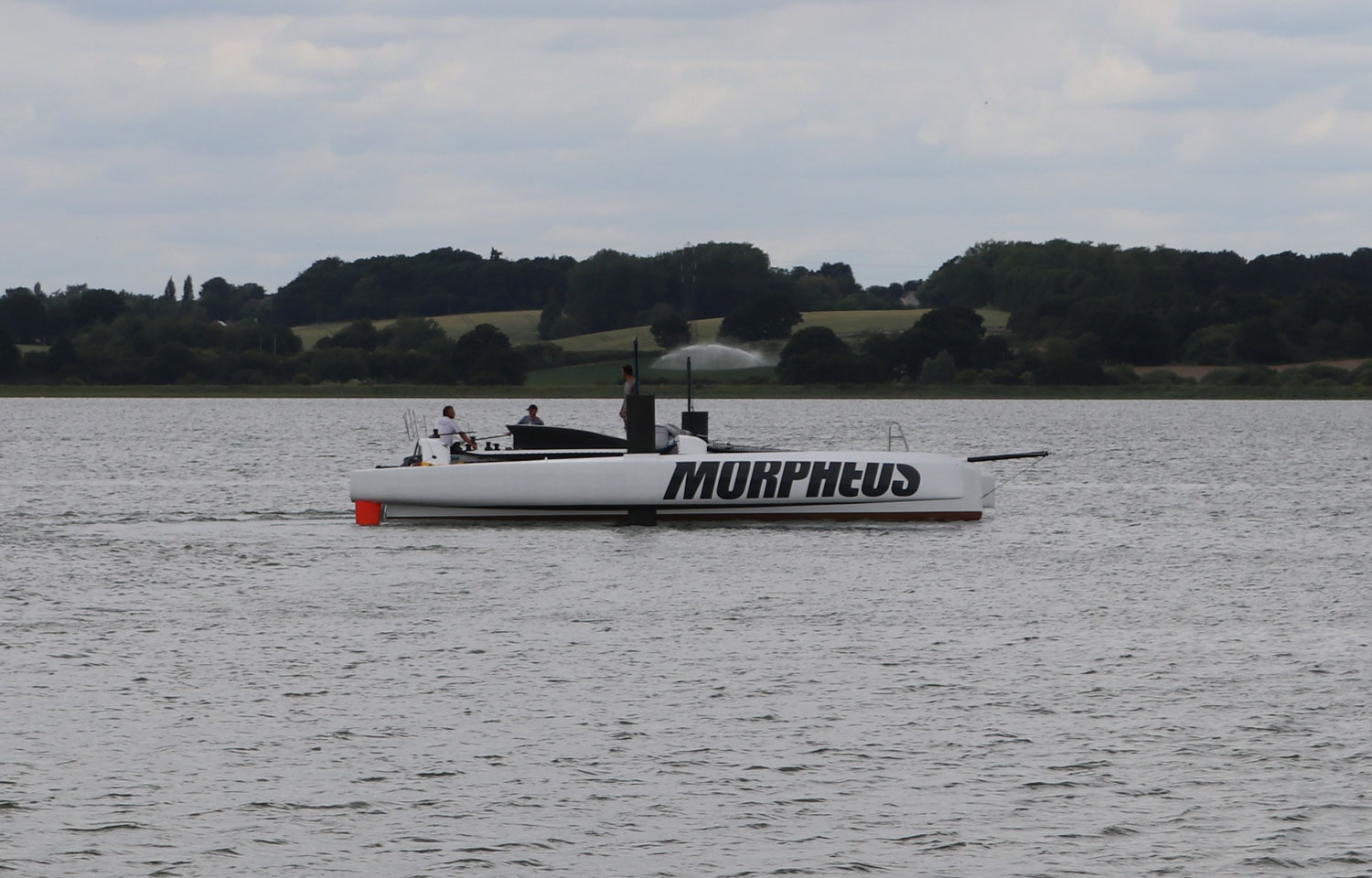

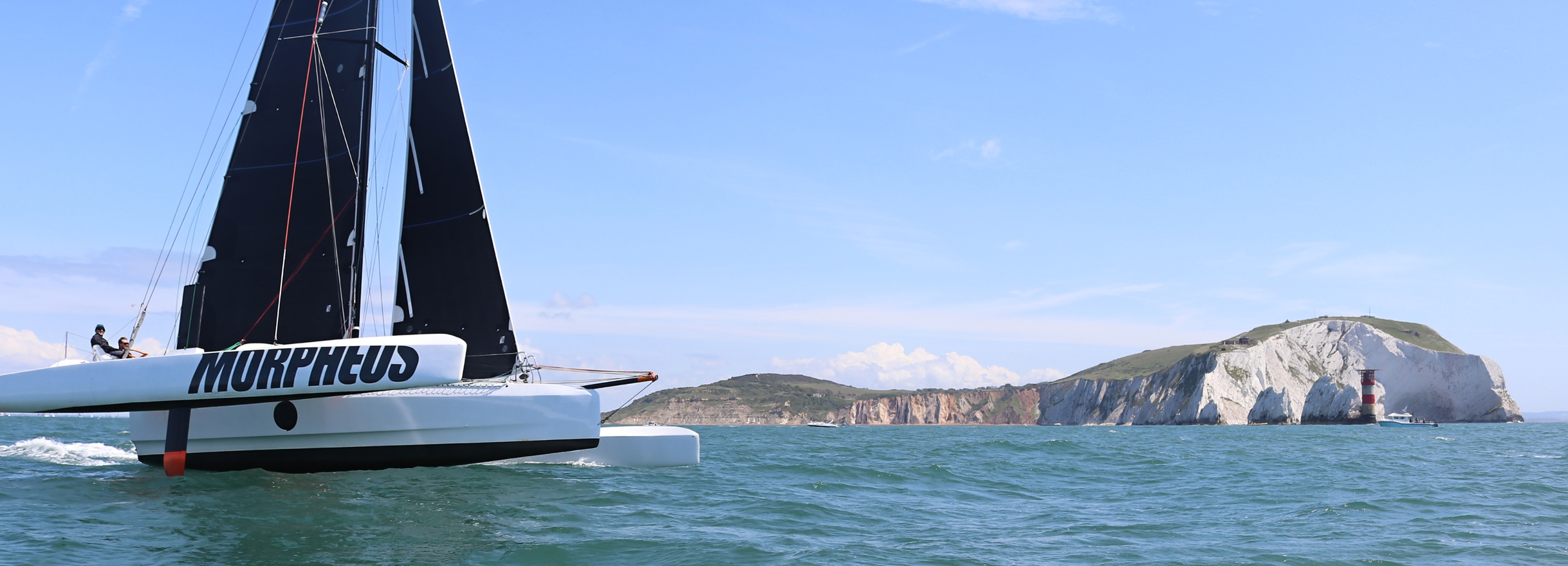

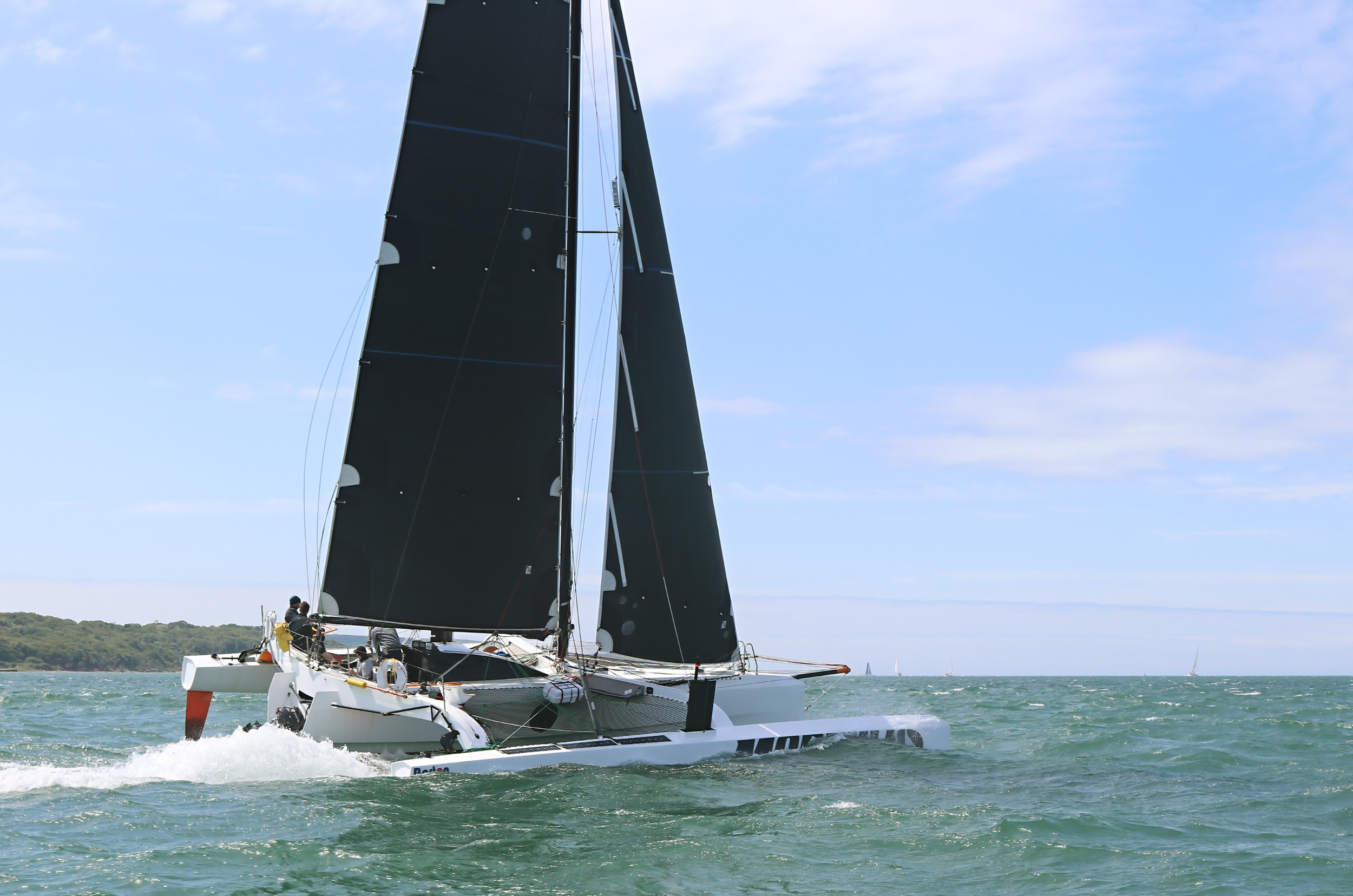

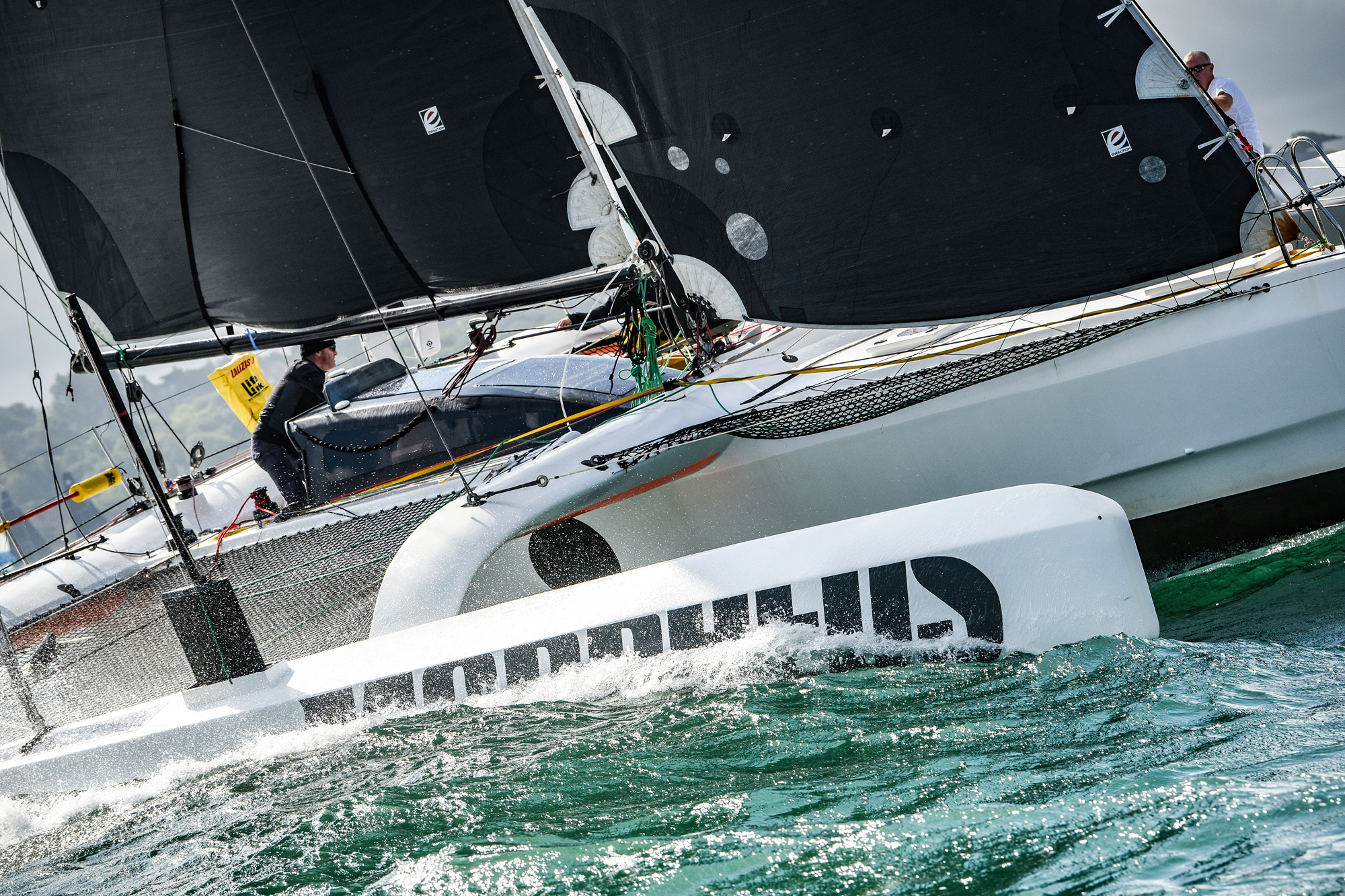

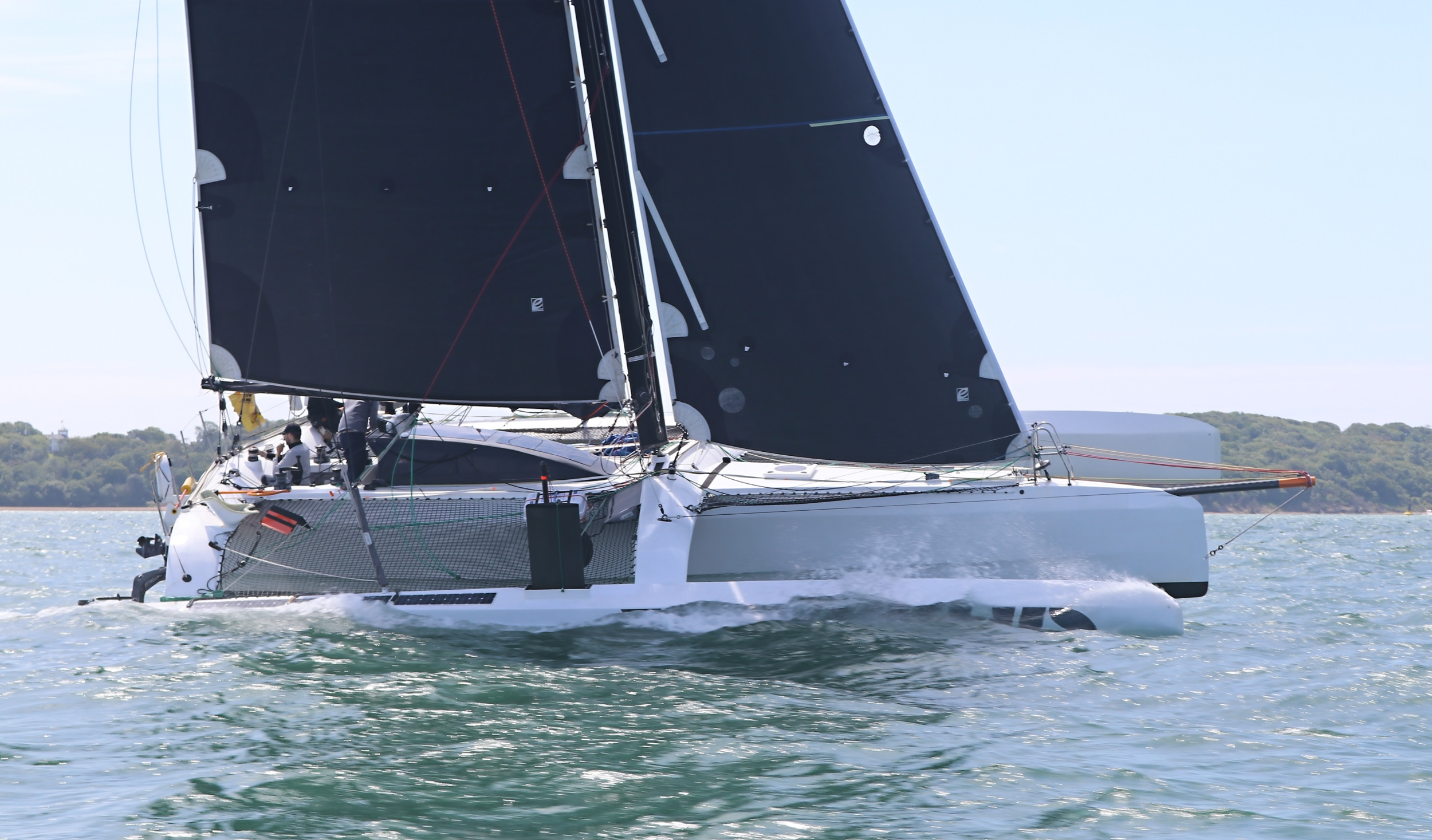

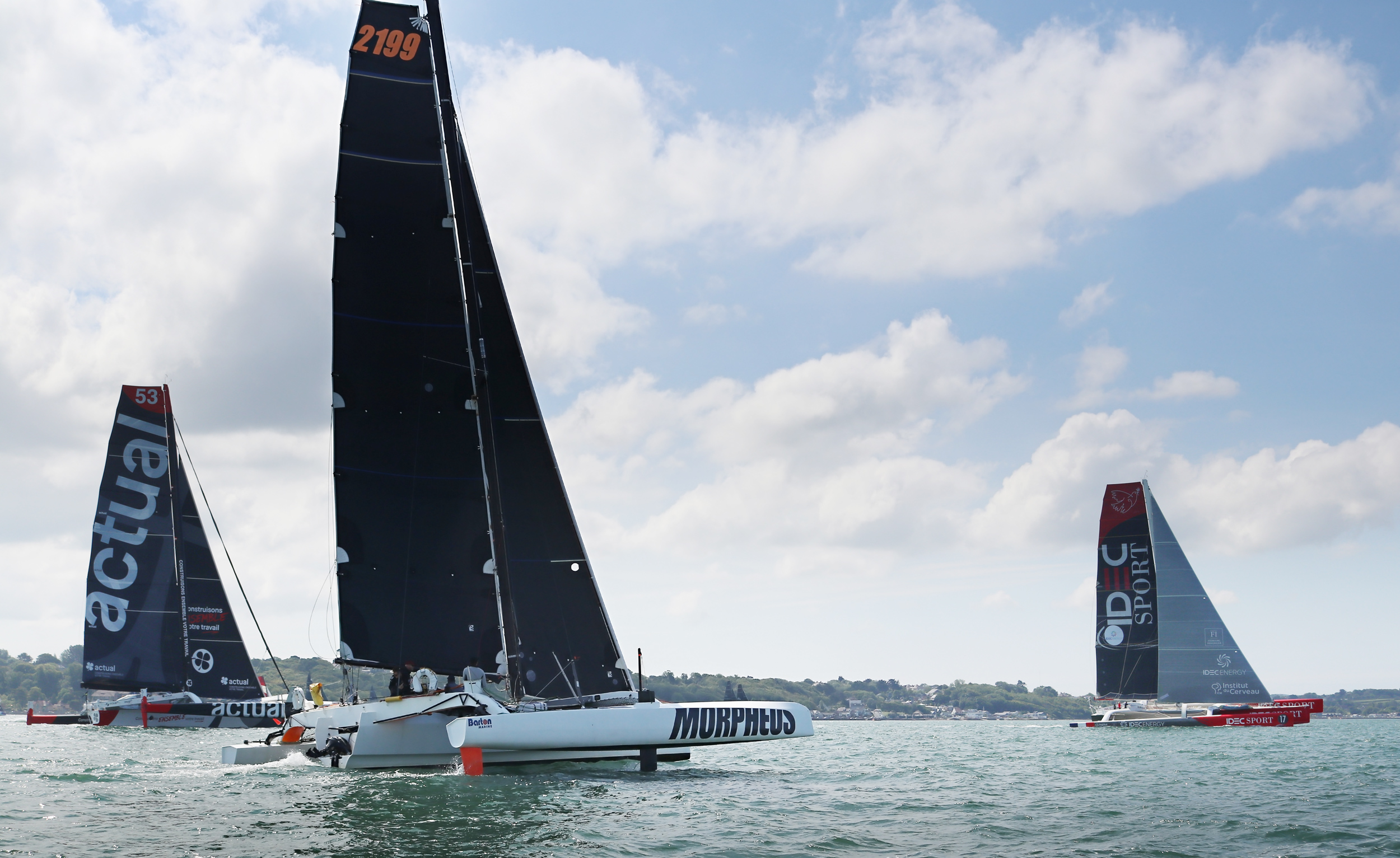

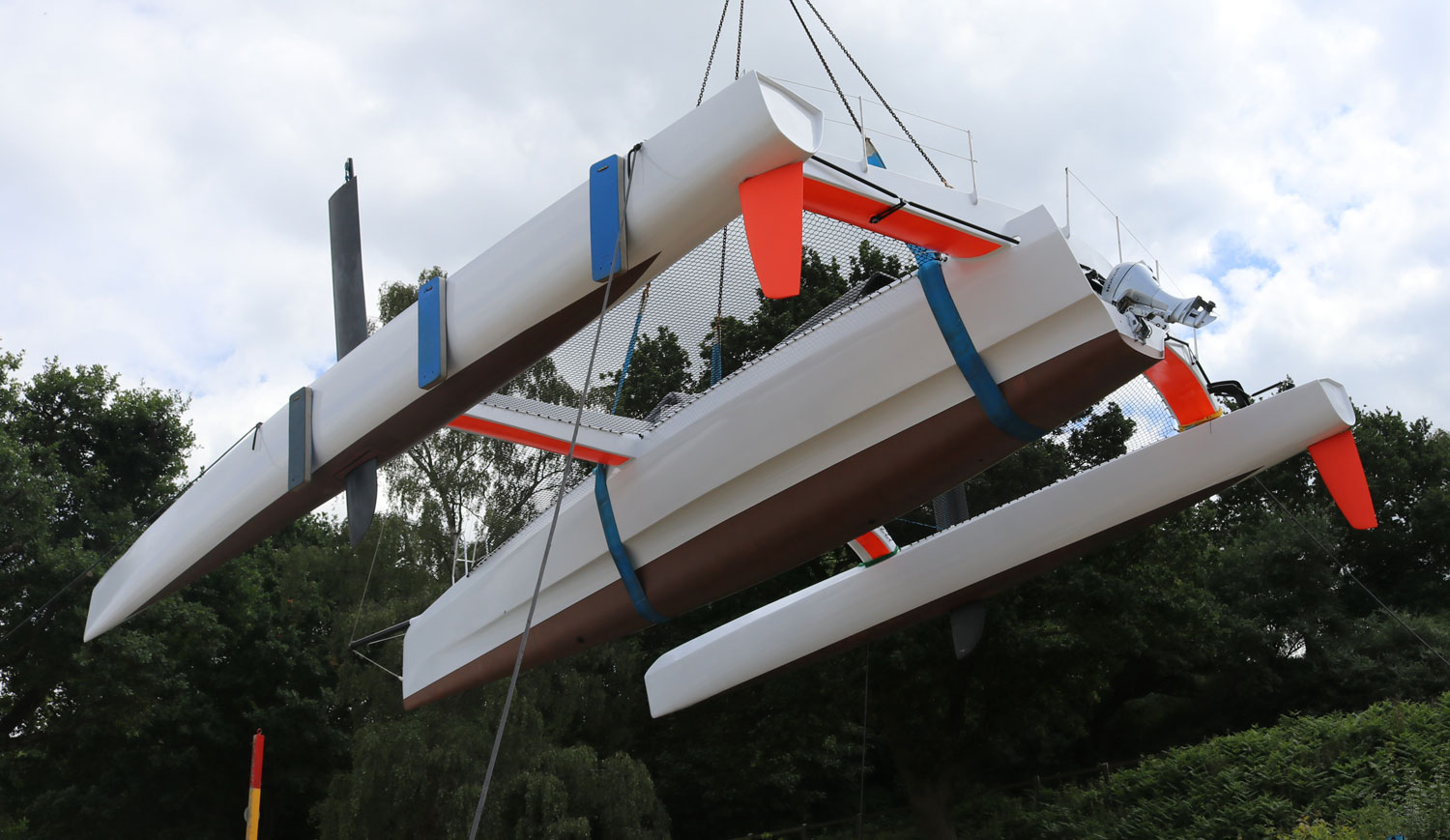

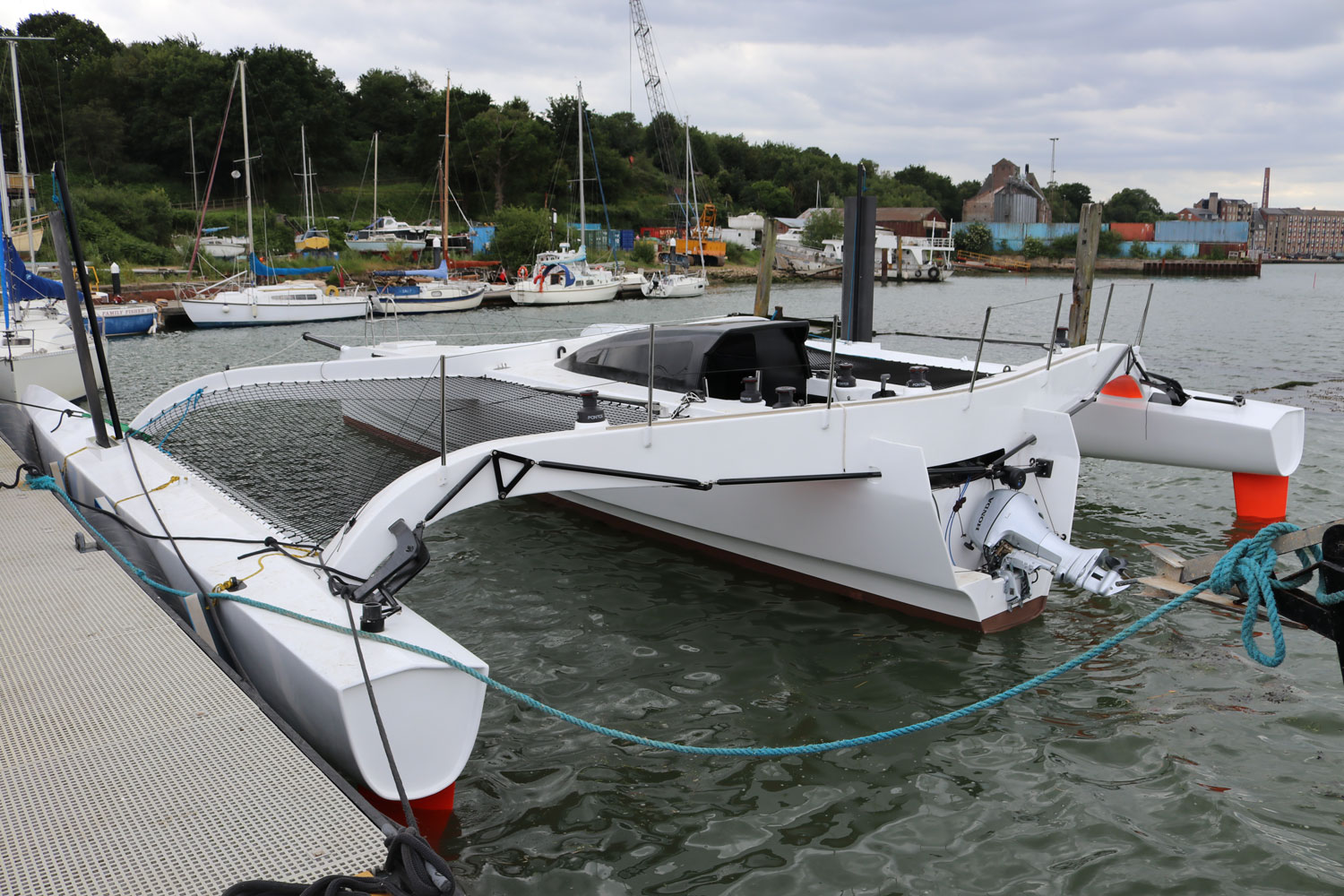

Photos

Click to englarge

The images and content on this site are copyright. No images or content from this site should be reproduced without the permission of Shuttleworth Design.

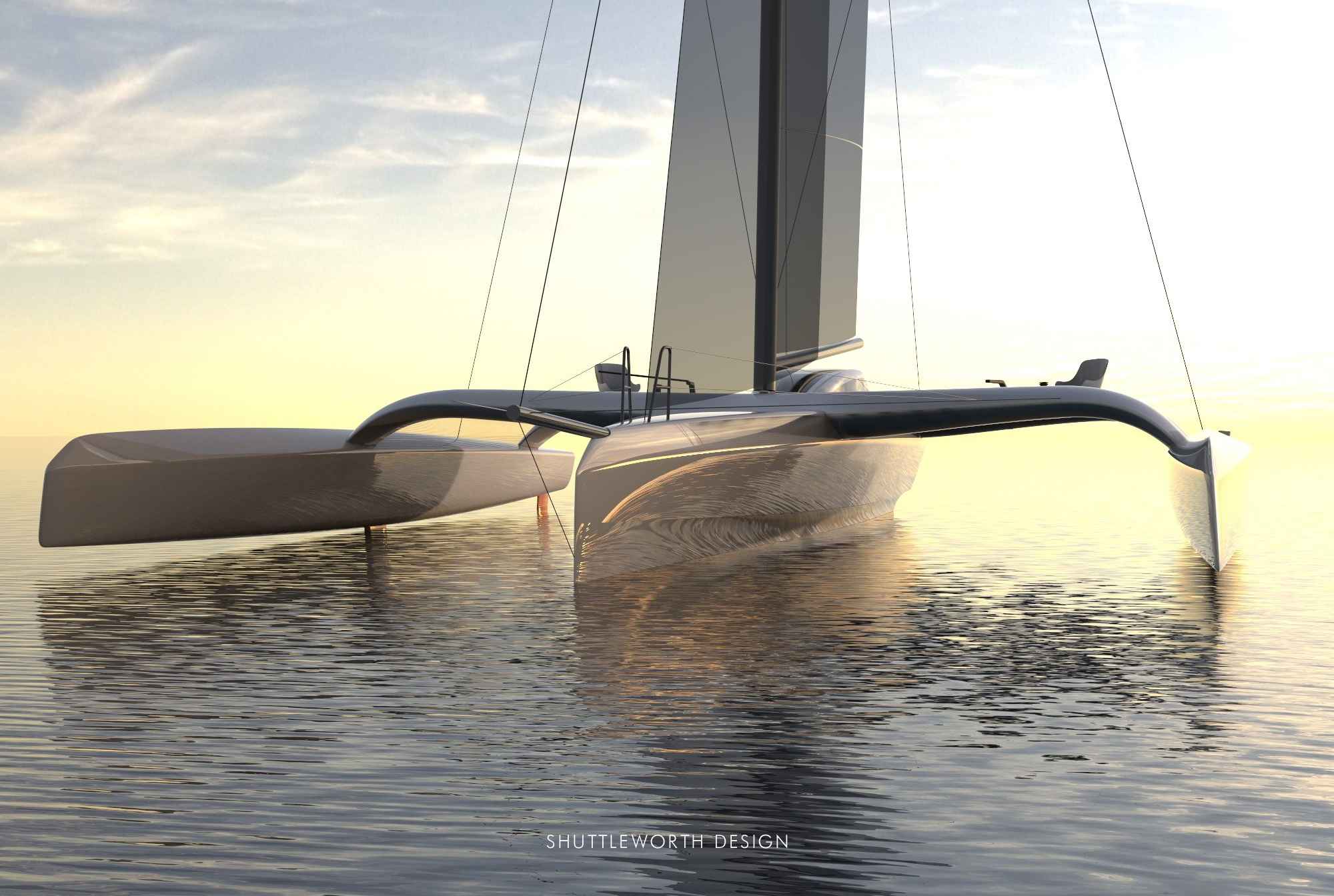

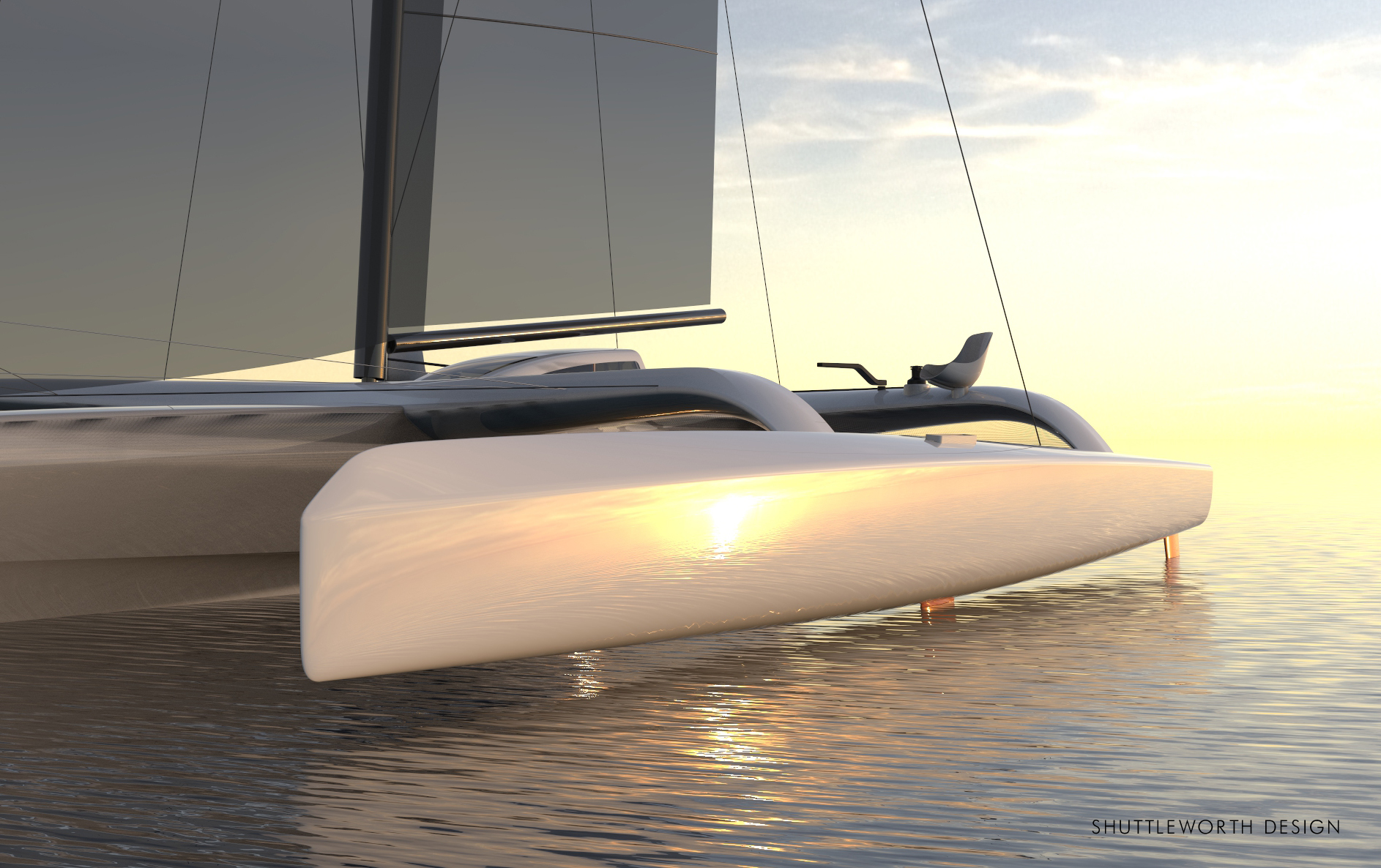

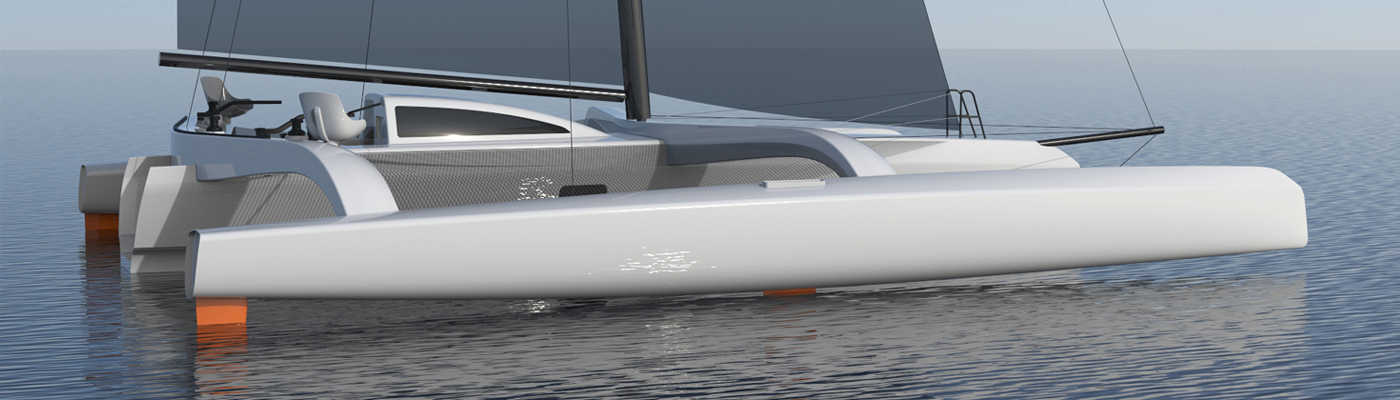

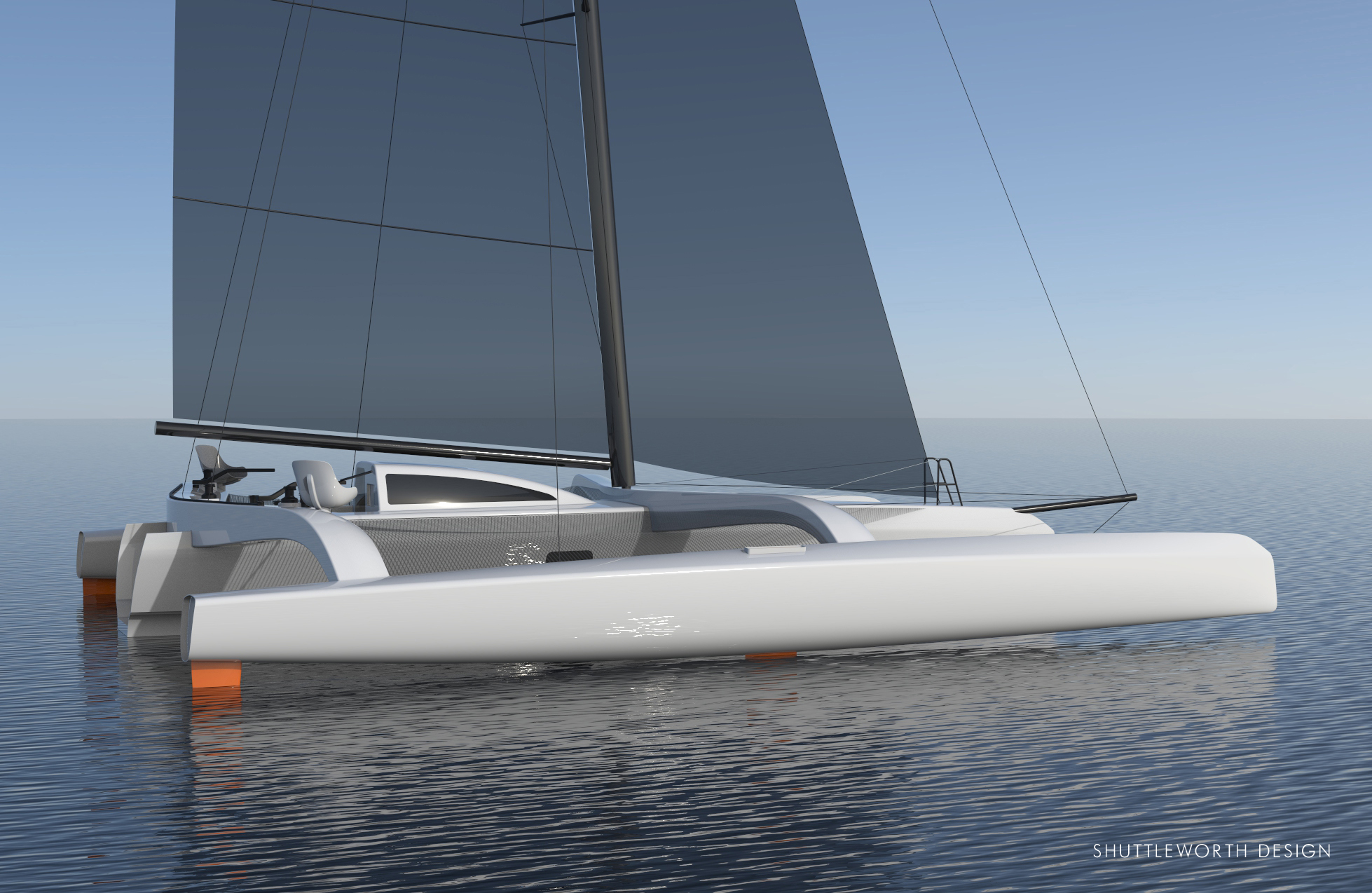

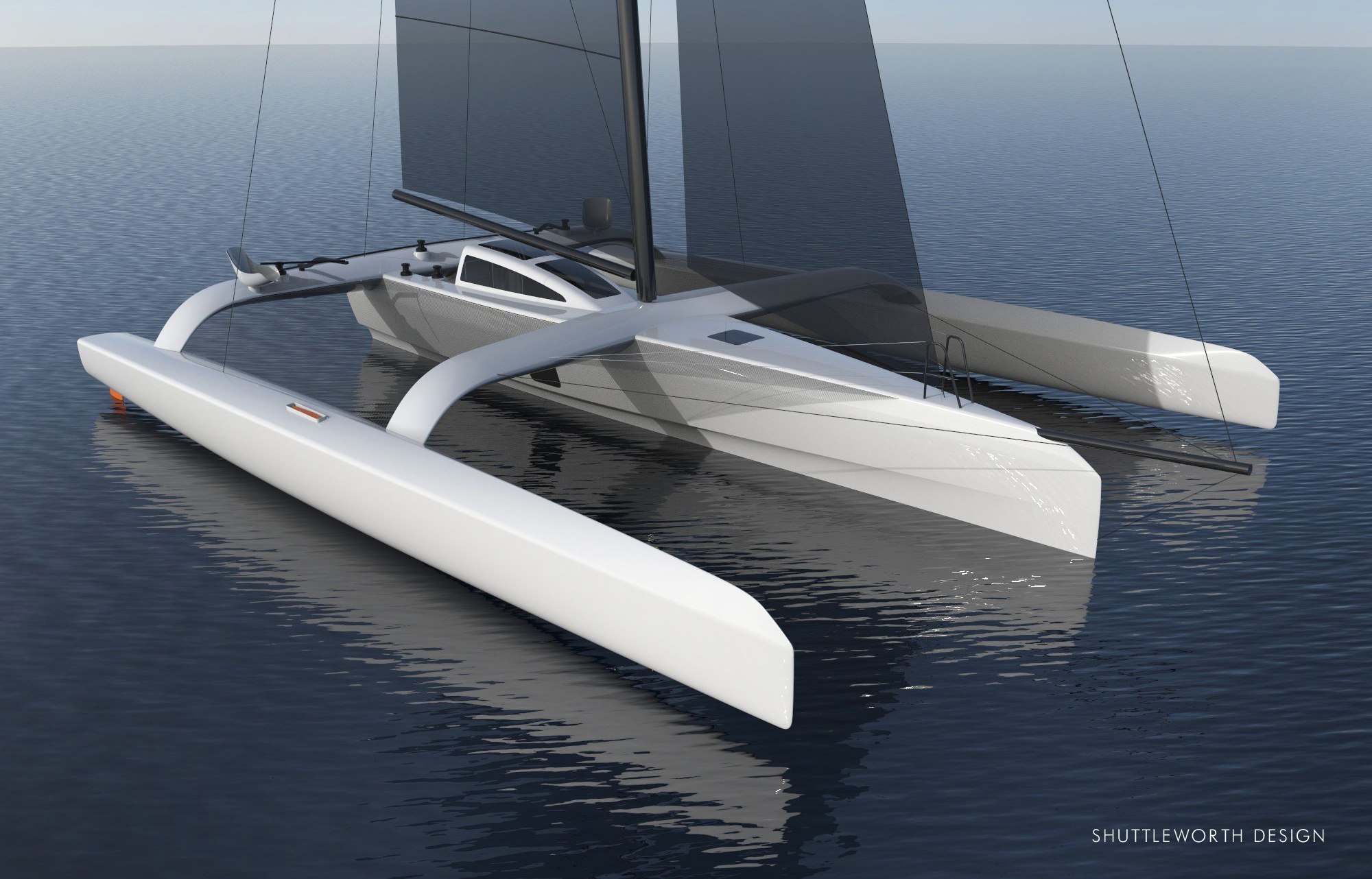

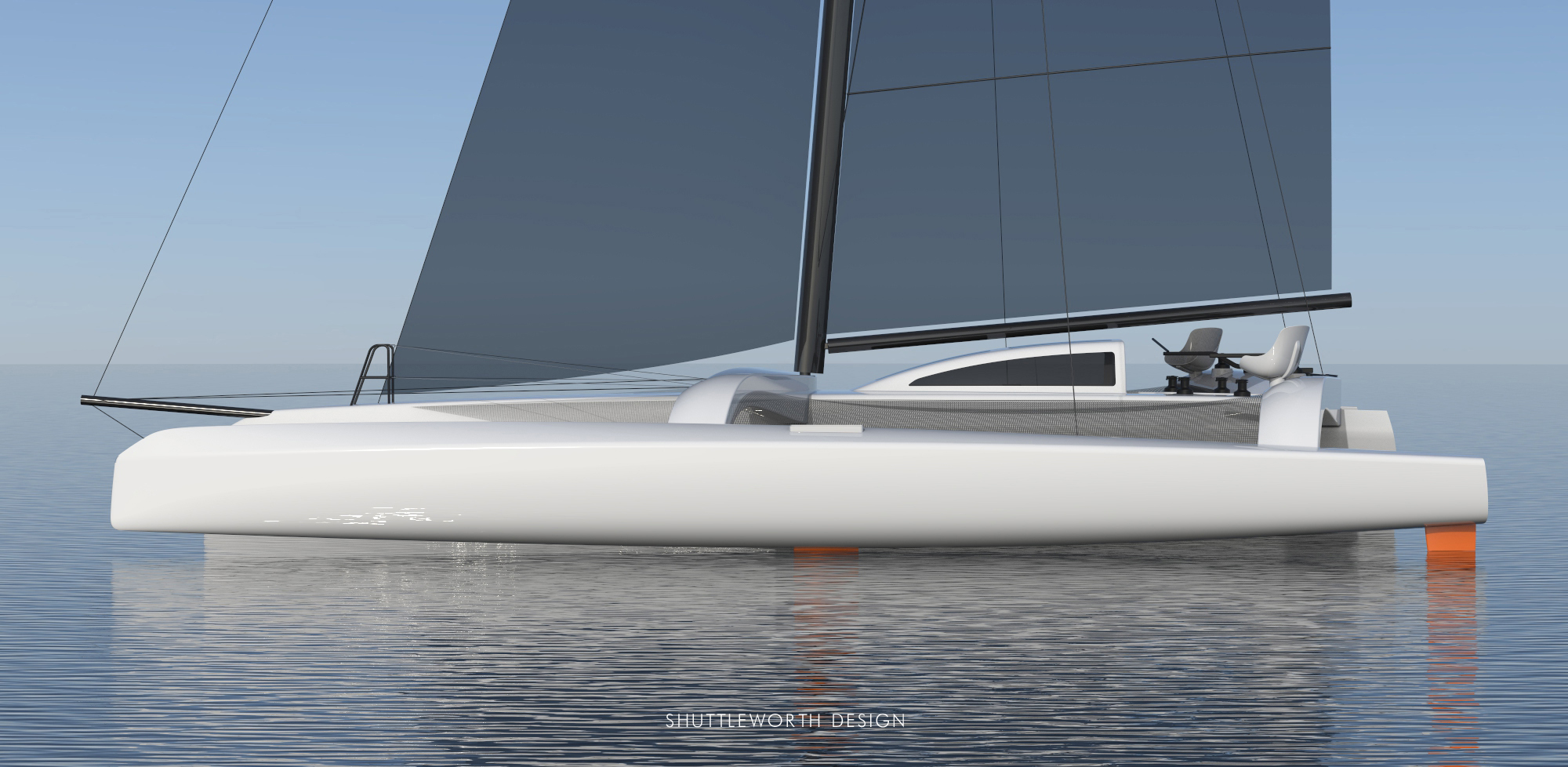

Renderings

Click to englarge

Technical Data

  • General
  • Length Overall 11.95 m
  • Beam 9.7 m
  • Draft 0.48 m (0.712 m to tip of rudder)
  • Displacment LT 2200 Kg
  • Hull Construction Composite (Carbon/Foam)
  • Deck Construction Composite (Carbon/Foam)
  • Main Sail 70 m2
  • Head Sail 35 m2
  • Code 0 85 m2
  • Mast Height 18.6m
  • Accommodation
  • Owner and Guests 6
  • Design
  • Exterior Styling Shuttleworth Design Ltd
  • Naval Architecture Shuttleworth Design Ltd
  • Structural Design Shuttleworth Design Ltd
  • Interior Layout Shuttleworth Design Ltd
